DESCRIPTION

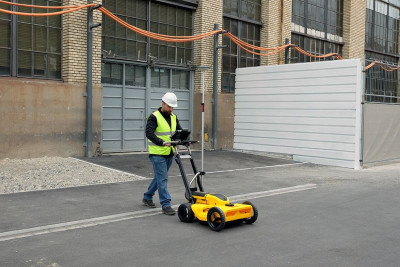

Introducing the DS4000
Lightweight, portable, and easy to use, the DS4000 pairs seamlessly with cutting-edge software featuring Quick Scan Mode to streamline field operations, save time, and reduce costs. With on-site marking, real-time digitalization, and reporting capabilities directly in the field, the Leica DS4000 empowers professionals to locate and mark utilities with unparalleled ease and accuracy, accelerating workflows and ensuring faster project completion.
Shop Leica DS4000 Utility Detection system.
View Specs
HH-VV Orientation
The DS4000 can utilize both horizontal-horizontal (HH) and vertical-vertical (VV) antenna configurations, designed to optimize subsurface exploration with unmatched precision. HH antennas are ideal for detecting horizontally oriented structures, such as utility lines, delivering superior signal penetration and clarity in layered subsurface environments. On the other hand, VV antennas specialize in identifying vertical features, including fractures and tree roots, by aligning with their natural orientation for enhanced signal accuracy. By leveraging both configurations, the DS4000 provides complementary data, improves target detection, minimizes clutter, and adapts seamlessly to diverse subsurface conditions. This adaptability empowers operators to customize their surveys to meet specific goals, ensuring accurate and efficient data collection for comprehensive subsurface analysis.
EST Technology
Equalized Scrambled Technology (EsT) is a patented innovation that revolutionizes ground-penetrating radar (GPR) performance, propelling it to unprecedented levels of efficiency and accuracy.
EsT excels in noise rejection across both low and high frequencies, significantly extending depth range and enhancing signal resolution. This technology provides comprehensive and effective control over the GPR waveform, ensuring optimal performance in diverse subsurface environments.
By equalizing shallow and deep reflections with a sophisticated multi-gain boost, EsT "scrambles" these signals together to maximize underground noise rejection. This process ensures that both surface-level and deeper reflections are captured with unparalleled clarity and precision.
Software
Revolutionize your field operations with our cutting-edge software, featuring Quick Scan Mode to save valuable time and reduce costs. Effortlessly perform on-site marking and digitalization, ensuring accurate and efficient data collection in real time. With the ability to generate reports directly in the field, our software streamlines workflows and accelerates job closure, keeping your projects on track and under budget.
Portability
The DS4000 is designed with convenience in mind. Its lightweight construction makes it easy to handle, while the innovative folding mechanism allows for quick and hassle-free setup or storage. Whether you're transporting it between job sites or packing it into a vehicle, its compact and portable design ensures it fits seamlessly into your workflow.
ADDITIONAL INFORMATION
INCLUDES :
DS4000 WITH CT1500 TABLET
Automatic calibration for an easy and quick start-up Visualization and storage of radar data Real-time visualization of radar tomography (time slices) Import of cartography of the surveyed area from different sources for visualising geo-referenced underground asset position in real time. Connection with NMEA positioning device Multilanguage support Metric and Imperial units Export, store, share and access data on major Cloud service providers for a streamlined workflow in utility detection On site target marking Automatic report generation
