Product Overview

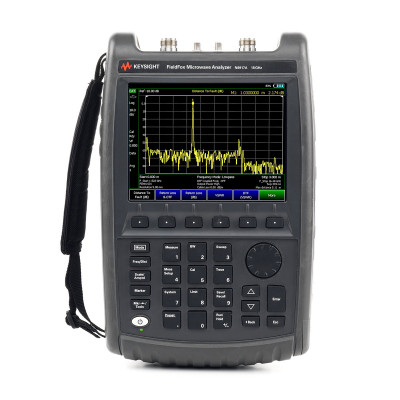

The Keysight (formerly Agilent) N9917A FieldFox Microwave Analyzer is a handheld, highly portable device. The N9917A may be compact but isn't short on capabilities - it comes equipped with a max frequency of 18 GHz. The FieldFox N9917A has been developed with on-site use and portability in mind, and has quite a few technological features. Primarily a cable and antenna analyzer, the N9917A can also be configured to work as a spectrum analyzer, power meter, and a vector network analyzer. Key Features & Specifications of Keysight N9917A Cable and antenna analyzer (CAT), vector network analyzer (VNA)
Frequency Range: 30 kHz to 18 GHz
Dynamic range: 91 dB
CAT: Distance-to-fault, return loss, cable loss
VNA: S11, S21, S22, S12, magnitude and phase
Output Power: -4 dBm
Trace Noise: 0.004 dBrms
No. of ports: 2
DANL @ 1 GHz: -155 dBm
Overall amplitude accuracy: /- 0.5 dB
Spectrum analyzer
Frequency Range: 5 kHz to 18 GHz
<> 0.5 dB amplitude accuracy, full band, over full temperature range of -10 to 55 C (14 to 131 F)
Spur-free dynamic range at 2.4 GHz 2/3 (TOI-DANL) in 1 Hz RBW; Nominal >105dB
