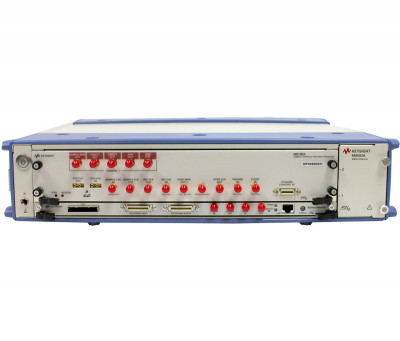

Keysight (Formerly Agilent) M8190A

DESCRIPTION

From low-observable systems to high-density comms, testing is more realistic with precision arbitrary waveform generation. Now you can take reality to the extreme: The Keysight (formerly Agilent) M8190A AWG is the source of greater fidelity, delivering high resolution and wide bandwidth simultaneously. This unique combination lets you create signal scenarios that push your design to the limit and bring new insight to your analysis. Get bits and bandwidth and enhance your reality.
The Keysight M8190A is a force to be reckoned with, which comes packed with features including:
Advanced waveform capabilities:

• Arbitrary waveforms with two DAC settings: 12 bit with 12 GSa/s and 14 bit with 8 GSa/s
• Variable sample rate from 125 MSa/s to 8 / 12 GSa/s
• 7 GHz IQ modulation bandwidth
• Up to two GSa memory per channel

Amplitude:

• 14 bit with 8 GSa/s
• Variable sample rate from 125 MSa/s to 8 / 12 GSa/s
• 7 GHz IQ modulation bandwidth
• Up to 2 GSa memory per channel three selectable output amplifiers:

Connectivity:

• GPIB
• LAN
• USB

Specifications

• 14-bit resolution up to 8 GSa/s
• 12-bit resolution up to 12 GSa/s
• Variable sample rate from 125 MSa/s to 8 / 12 GSa/s
• Spurious-free-dynamic range (SFDR) up to 90 dBc typical
• Up to 2 GSa arbitrary waveform memory per channel with advanced sequencing
• Analog bandwidth 5 GHz (direct DAC out)
• Up to 80 dBc SFDR - Tones clearly stand out of noise (Even with thousands of tones)
• 2 GSa memory per channel - Realistic signal scenarios with long play time
• 5 GHz analog bandwidth - Mimic analog imperfections with custom ISI
