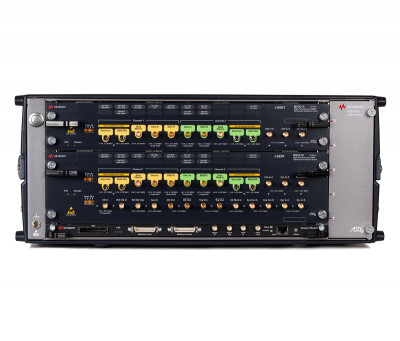

The high-performance Keysight (formerly Agilent) M8020A-16G enables fast, accurate receiver characterization of single- and multi-lane devices running up to 16 Gb/s.
With today's highest level of integration, the Keysight (formerly Agilent) M8020A-16G streamlines your test setup. In addition, automated in situ calibration of signal conditions ensures accurate and repeatable measurements. And, through interactive link training, it can behave like your DUT's link partner. All in all, the J-BERT M8020A-16G will accelerate insight into your design.
Versatility is one of the M8020A-16G's strongest features, and as such the device can be used for various research and development based applications.
Target applications
R&D and test engineers who characterize, verify compliance of chips, devices, boards and systems with serial I/O ports up to 16 Gb/s. The M8020A can be used to test popular serial bus standards, such as: PCI Express, USB, MIPI M-PHYTM, SATA/SAS, DisplayPort, SD UHS-II, Fiber Channel, QPI, HyperTransport, memory buses, backplanes, repeaters, active optical cables, Thunderbolt, 10 GbE, 100GbE (optical and electrical), SFP , CFP2/4 transceivers, CEI.
Specifications
- Data rates up to 8.5 and 16Gb/s expandable to 32 Gb/s
- 1 to 4 BERT channels in a 5-slot AXIe chassis
- 8 tap de-emphasis, positive and negative
