Kayden Drying Shakers

PRODUCT DESCRIPTION

Kayden Industries provides single, dual and triple unit linear and elliptical motion drying shakers. Kayden units are designed and built to produce high levels of G-Force and high throughput, achieving optimal performance in a drying shaker by:

• Providing drier cutting discharge
• Recovering drilling fluid
• Reducing disposal and operating costs

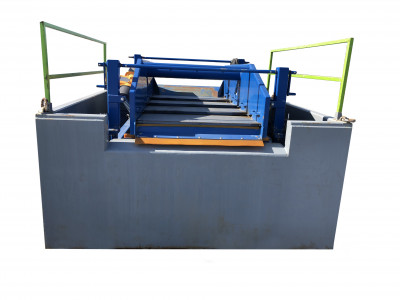

The K4 Drying Shaker has a screen area of 30 ft² that provides an acceleration of 6-Gs. A large screen area, large applied acceleration, and elliptical screen motion have raised the K4 Drying Shaker above and beyond the competition in the industry. The elliptical screen motion also allows for excellent conveyance of cuttings and extends screen life.

TECHNICAL SPECIFICATIONS K4 DRYING SHAKER

• Screen Area 30 ft² (2.8m²)
• G-Force 6 Gs
• Motion Progressive elliptical
• Dimensions (LxWxH) 166" x 100½" x 40¼" (295cm x 255cm x 102cm)
• Base Dimensions (LxW) 100" x 68" (256cm x 174cm)
• Weight 3200 lb (1455 kg)
• Feed Height 25" (65cm) adjustable
• Adjustment Angle 0 to 8 degrees
• Angle Change Type Hand crank (standard) or center wheel (optional)
• Screen Type Pre-tension
• Screen Number 4 screens
• Screen Size 48" x 24" (122cm x 61cm)
• Motors Italvebras 1200 or 1800 rpm, 50 or 60 Hz
• Motor Type Explosion proof
• Electrical Box Type Explosion proof
