KANOMAX TABmaster Airflow Capture Hood Model 6710

PRODUCT DESCRIPTION

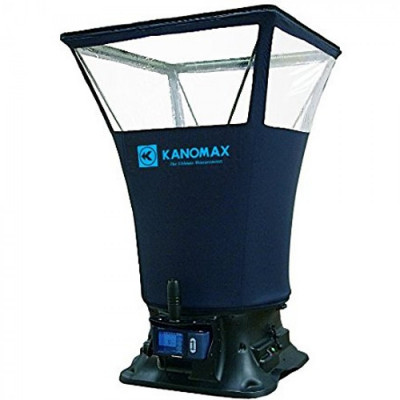

KANOMAX TABmaster™ Flow Hood Model 6710
Testing, Adjusting and Balancing is a breeze with this instrument!
Whether you need to test a newly installed HVAC system for initial functionality, re-test a building’s HVAC after it undergoes significant constructional changes, or regular seasonal change check-ups, the TABmaster Flow Hood Model 6710 needs to be in your equipment arsenal.  The unit has some defining characteristics that put it into the running for best choice among professionals who actually operate TAB instruments in the field on a day-to-day basis.
The instrument has an impressive range of measurement for air flow, boasting readability from 23 to 2530 cubic feet per minute, which is measured simultaneously along with temperature, humidity and even direction of air flow.  The upper portion of the flow hood is a very durable and transparent material that allows the user to easily line the unit up with the duct time after time, and the rest of the unit is engineered to be very hearty and long lasting.  The TAB pros out there know exactly how frustrating it can be when dealing with a flimsy flow hood while performing any HVAC-related task; there’s simply no room for “flimsy.”  There are also six different hood sizes available, so you can be sure that you won’t have a problem while moving from duct to duct for readings.
But some of the more innovative features of the TABmaster Flow Hood, that allow it to break away from the crowd of flow hood choices, is its capacity to handle measurements through storage and software enhancements.  The unit stores up to 3,000 records and allows you to store multiple measurements under single individual ID#’s for easy organization and reviewing when the records are uploaded conveniently though a standard USB port.  This feature is an absolute must-have at larger job sites or sites with multiple HVAC systems.

Features

• ​23 to 2500 cfm (40 to 4250 m3/h) range
• Simultaneously measures and displays air flow, temperature and humidity
• Displays the direction of the airflow as well as the velocity
• Store up to 3,000 measurements
• Advanced storage feature allows you to store multiple measurements under a single ID#

Benefits

• This is the perfect tool for accurate supply and return airflow measurements
• Our optional interchangeable hoods make it a snap to sample the air for any duct size
• The unit is lightweight and easy to handle
• Simultaneously measures and displays air flow, temperature and humidity
• Motorized tilt on meter to allow for meter angle adjustment
• A multi-functional instrument that measures airflow and pressure readings
• Air volumetric flow measurements through registers, diffusers and grilles
• Displays Air velocity direction and measurement in full color for clear, easy viewing
• HERS (Home Energy Rating System) approved testing instrument
• NIST TRACEABLE CALIBRATION CERTIFICATE*

Specs

• Measurement Specs
• Airflow
  • Range
    • 23 to 2500 CFM (40 to 4250 m3/h)
  • Accuracy
    • +/-3% of READING +/- 8m3/h (>85m3/h)
  • Resolution
    • 1 m3/h
• Temperature
  • Range
    • 32 to 122°F (0 to 50°C)
  • Accuracy
    • +/- 0.5°C
  • Resolution
    • 0.1°C
• Humidity
  • Range
    • 0 to 100% RH
  • Accuracy‘
    • +/- 3.0 %RH (10 to 90%RH)
  • Resolution
    • 0.1 %RH
• General Specifications
  • Standard Hood Dimensions
    • 2′ x 2′ (610x610mm_)
  • Available Hood Dimensions
    • 2′ x 4′ (610x1220mm)1′ x 4′ (305x1220mm)
    • 3′ x 3′ (915x915mm)
    • 3′ x 2′ (915x610mm)
    • 20″x 20″
    • 1′ x 4”(500mm x 500mm)
    • 2′ x 2′ with Straighteners
  • Datalogging
    • Up to 3,000 Measurements
  • Power Supply
    • 4 x AA batteries orOPTIONALAC Adapter
  • Weight & Dimensions
    • 7.9 lbs (3.6 kg), Main Body: 3.4″ x 7.4″ x 1.6″
  • Standards
    • CE-mark
• What’s included
  • Meter , Standard hood (2 x 2ft), PC communication cable, Data processing software, Operational manual, Carrying case, Calibration certificate
