Product Overview

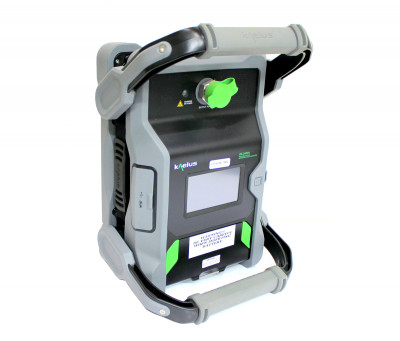

The Kaelus iPA-2600A is a battery powered, high-power PIM Test Analyzer that is IEC compliant, portable, rugged, and reliable. Adapted to support multiple test scenarios, the Kaelus iPA-2600A can be employed for testing at the top of the tower, base of tower, roof top and in-building for DAS systems.
The Kaelus iPA-2600A PIM Analyzer produces transmission and receiving band frequencies that range from approximately 2600-2700MHz (LTE 2600). Each iPA-2600A comes equipped with a protected touch screen interface for local control. The inclusion of a tablet computer as a remote control for hands-free dynamic testing makes the Kaelus iPA-2600A, a safe, easy and efficient portable instrument for field testing experience.
Kaelus iPA-2600A - Features and Specifications:
Transmitter Power accuracy: (per tone) plus/neg 0.5dB (max)
Receiver Measurement range: -50dBm to -128dBm
Reverse (reflected) PIM, 3rd and 5th order measurement technique
Remote control (included) - 7 inch tablet computer
4.3in (109mm) Touch screen interface
RL Alarm feature - Automatic recognition and shut down on high return loss detection
Spectrum monitor, frequency sweep and time trace modes
RTF compatible
Battery powered with 25.9VDC, 2500mAH Li-ion battery packs (removable)
