INNO View500 1310nm/1550nm

Product Specifications

DESCRIPTION

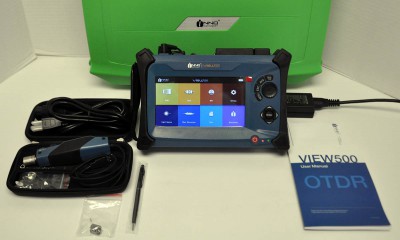

View500 OTDR 1310nm/1550nm, VFL, OPM, V20 Microscope & SC/APC Connectors
The VIEW500 OTDR is used in the installation and maintenance of fiber optic cables. Features of the VIEW500 OTDR include high precision test capabilities, fast response times, and easy to learn operation. The multi-point capacitive touch screen allows for user-friendly operation. The VIEW500 offers accurate and fast test results and creates a report automatically. The VIEW500 is equipped with an industrial grade CPU for creating and storing test results. This also ensures the results are measured quickly and accurately.
View500 OTDR Features

The World’s Fastest Booting Time
SOLA, Simplify The OTDR Test Process
7” Touch Screen with Smart GUI
8G Internal Storage with Internal SD Card and External USB Memory Built-In VFL and Light Source
Ultra High Capacity Battery

View500 OTDR Technical Specifications
ModelVIEW500
Display7 inches, High Brightness TFT LCD, resolution of 800×480
Distance unitm / Km
Dynamic range1310nm / 1550nm, 33dB / 35dB
Measurement range1.3, 2.5, 5, 10, 20, 40, 80, 10km, 160km, 360km
Pulse width5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 10μs, 20μs
Event dead zone0.8m
Attenuation dead zone4m
Distance accuracy±(1m+Distance×2.5×10-5 +Sampling resolution)
Loss scale linearity±2dB
Sampling points160,000 points
Resolution0.04m ~ 10.24m
Operating modePress keys and touch screen
Battery capacity7,800mAh
File formatSOR(Telcordia), BMP, JPG
External connectionUSB2.0
Port of connectorFC / APC, SC / APC
Power supplyAC Input 100-240V, 50-60Hz / DC Input 19V, 3.42A
VFL moduleOperating wavelength: 650nm ± 10nm, Universal interface: 2.5mm
Light sourceOperating wavelength: 1310nm / 1550nm ± 10nm
Optical power meterWavelength calibration: 850 / 1300 / 1310 / 1490 / 1550 / 1625nm
Measurement time (OPM)-70 to +6dBm
Accuracy (OPM)0.01dB
Unit display for OPMdBm, mW , uW
