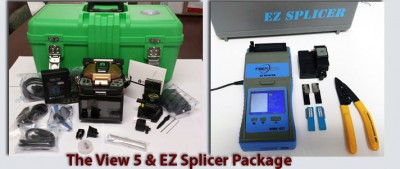

INNO View 5 & FORC-EZ7 Fusion Splicer Package

DESCRIPTION

View 5 Core Alignment Fusion Splicer and The FORC-EZ7 V-groove, Clad Alignment Splicer

View 5 Fusion Splicer Features Include:
The World's Highest Magnification and Resolution
5" Color High Resolution Touch Screen
3 Bright LED for Dark Environment
GPS Tracking Feature
Mirrorless Design for improved work efficiency
5mm cleave length for 250µm/900µm/3 mm, Flat cable, and SOC
35 Splicing Modes
Illuminated Keypads
INNO Instrument New View 5 Core Alignment Fusion Splicer Kit Includes

• View 5 Fusion Splicer
• High Precision Cleaver / V7
• Fiber Holder / FH-10S
• AC Adapter
• Cooling Tray
• Electrodes / E-50
• Manual CD
• LBT-52 / Battery Pack
• Power Cable / ACC-25
• Carrying Case / NBX-35

EZ7 EasySplicer Features

• Splicing method: V-groove cladding alignment
• Fiber Types: SMF, MMF 50/125 um fiber, 250 µm primary and 900 um secondary coated fiber.
• Fiber Handling: Fiber holders, 2 pairs (250 and 900)
• Splice Programs: 2 pre-defined. SMF & MMF
• Typical splice Loss: 0.03dB SMF, 0.01dB MMF
• Typical Cycle time: 7s + 35s (splice cycle+ oven cycle)
• Sleeve Dimensions: Max 64mm length, 2-5mm diameter supported by oven.
• Communication: USB, mini usb plug.
• Memory: Internal 1MB, External SD-Card
• Monitor: LCD, color, 2,8", 320×240 pixels
• Magnification: Camera 140x
• Operating Environment: 0-40°C, max 95% RH, non-condensing
• Weight: 800g - 4.3 lbs
• Power Sources: External power supply, 6V, 1.25A, 100-240VAC 50-60Hz, Build in Li-Ion battery pack
• Splicing Capacity: 60 splicing cycles
• Additional Features: Loss estimation, Fiber fault detection, SD-card for logging etc.

The EZ7 EasySplicer Kit Contents Include:

• EasySplicer - EZ7
• Fiber Cleaver - C7
• AC Adapter
• Hand Stripper
• (2) 250um Fiber Holders
• (2) 900um Fiber Holders
• DC Car Adapter
• Soft Cary Case
• CD Manual
