INNO View 5 & EZ7 EasySplicer Fusion Splicer Package

DESCRIPTION

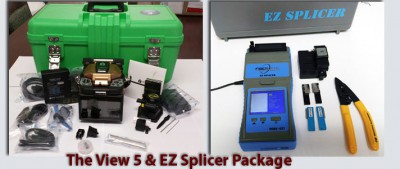

View 5 & FORC-EZ7 EasySplicer Fusion Splicer Package
The View 5 core-alignment fusion splicer has a 520X magnification, the highest magnification of any fusion splicer on the market today, allowing users to check fibers clearly with the naked eye. A friendly intuitive GUI (Graphical User Interface) and a 5 inch high-resolution color LCD touch screen that's easy to see and use help makes the View 5 fusion splicer the most dependable fusion splicer it it's field. With its standard functions and package, View 5 is the most cost-effective and reliable splicer in the telecommunication industry.

View 5 Fusion Splicer Features


• The View 5 Fusion Splicer has the World's Highest Magnification & Resolution
• 5" Color High Resolution Touch Screen
• 3 Bright LED for Dark Environment
• GPS Tracking Feature
• Mirrorless Design for improved work efficiency
• 5mm cleave length for 250µm/900µm/3 mm, Flat cable, and SOC
• 35 Splicing Modes
• Illuminated Keypads


View 5 Fusion Splicer Kit Includes


• View 5 Fusion Splicer
• High Precision Cleaver / V7
• Fiber Holder / VFH-40 / FH-SOC
• AC Adapter
• Cooling Tray
• Electrodes / E-50
• Manual CD
• LBT-40 / Battery Pack
• Power Cable / ACC-25
• Carrying Case / NBX-35


This splicer is fast, ruggard and designed for field use. Save time and keep costs down with the EasySplicer EZ7.
The EZ7 EasySplicer from FiberOptic Resale is the newest fusion splicer on the market. Recommended for FTTH installs the EZ7 EasySplicer is simple to use and weights in at only 4.3 pounds / (3.9 x 9.1 x 2.3 in) and has a splice time of under 7 seconds.
EasySplicer Features

• Splicing method: V-grove (cladding alignment)
• Fiber Types: SMF,MMF 50/125 um fiber, 250 µm primary and 900 µm secondary coated fiber.
• Fiber Handling: Fiber holders, 2 pairs (250 and 900)
• Splice Programs: 2 pre-defined. SMF & MMF
• Typical splice Loss: 0.03dB SMF, 0.01dB MMF
• Typical Cycle time: 7s + 35s (splice cycle+ oven cycle)
• Sleeve Dimensions: Max 64mm length, 2-5mm diameter supported by oven.
• Communication: USB, mini usb plug.
• Memory: Internal 1MB, External SD-Card
• Monitor: LCD, color, 2,8?, 320×240 pixels
• Magnification: Camera 140x
• Operating Environment: 0-40°C, max 95% RH, non-condesing
• Weight: 800g - 4.3lbs
• Power Sources: External power supply, 6V, 1.25A, 100-240VAC 50-60Hz, Build in Li-Ion battery pack
• Splicing Capacity: 60 splicing cycles
• Additional Features: Loss estimation, Fiber fault detection, SD-card for logging etc.


The EasySplicer Kit Contents


• EasySplicer - EZ7
• Cleaver - C7
• AC Adapter
• Hand Stripper
• (2) 250um Fiber Holders
• (2) 900um Fiber Holders
• Cary Case
