INNO View 12R & EZ7 EasySplicer Fusion Splicer Package

DESCRIPTION

View 12R Ribbon Splicer & FORC-EZ7 EasySplicer Fusion Splicer Package
View 12R ribbon splicer with a fully motorized clamp alignment system, is the most powerful and state-of-the-art ribbon splicer on the market. Its advanced automatic clamp alignment system offers more accurate and dependable ribbon fiber splicing up to 12 fibers with the double-tapping (zoom in & out) to the world’s highest magnification of 250x. View 12R+ ribbon splicer provides maximum work efficiency through it's fast splicing & heating time. The new View 12R+ has an ultra-high battery capacity of 220 splice/heat cycles, and universal holder for both 250µm & 900µm single fibers.

View 7 High-end Technology ARC Fusion Splicer Features Include:

• The World's Highest Magnification and Resolution
• 5" Color High Resolution Touch Screen
• 3 Bright LED for Dark Environment
• GPS Tracking Feature Mirrorless Design for improved work efficiency
• Large Battery Capacity : 355 Splice and Heat
• 5mm cleave length for 250µm/900µm/3 mm, Flat cable, and SOC
• Detachable SOC Heating Oven
• 35 Splicing Modes Illuminated Keypads
• Harsh Weather Conditions Adaptability

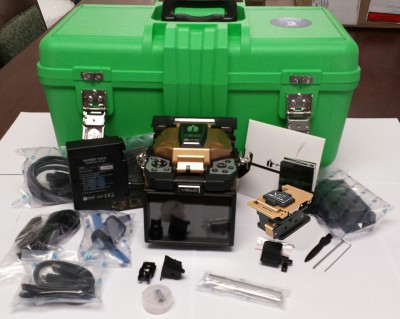

View 12R+ Ribbon Splicer Kit Includes

• Fusion Splicer - View 12R Fiber ribbon splicer
• High Precision Cleaver - V7
• Thermal Stripper - TS-8
• Fiber holders:
• 12 Ribbon: FH-12L / FH-12R
• 8 Ribbon: FH-8L / FH-8R
• 4 Ribbon: FH-4L / FH-4R
• 250 & 900ìm Single: FH-UL / FH-UR (Universal)
• SOC Holder: FH-SOC-R
• SOC Heater Cover - HTS-SOC
• AC Adapter - JS-180300
• Cooling Tray - CG-22
• Electrode - E-50
• Electrode Grinder - EG-18
• Manual CD - CD
• Battery Pack - LBT-20
• Power Cable - ACC-25
• Micro HDMI to USB Cable - HDMI-15
• DIN Cable - DIN-18
• Cigarette Lighter Cable - CJ-11
• Thermal Stripper Charger - AR-8
• Protection Sleeves - PS-12R-40
• V-Groove Cleaning Brush - CB-01
• Carrying Case - NBX-35


 This splicer is fast, ruggard and designed for field use. Save time and keep costs down with the EasySplicer EZ7.
The EZ7 EasySplicer from FiberOptic Resale is the newest fusion splicer on the market. Recommended for FTTH installs the EZ7 EasySplicer is simple to use and weights in at only 4.3 pounds / (3.9 x 9.1 x 2.3 in) and has a splice time of under 7 seconds.
EasySplicer Features

• Splicing method: V-grove (cladding alignment)
• Fiber Types: SMF,MMF 50/125 um fiber, 250 µm primary and 900 µm secondary coated fiber.
• Fiber Handling: Fiber holders, 2 pairs (250 and 900)
• Splice Programs: 2 pre-defined. SMF & MMF
• Typical splice Loss: 0.03dB SMF, 0.01dB MMF
• Typical Cycle time: 7s + 35s (splice cycle+ oven cycle)
• Sleeve Dimensions: Max 64mm length, 2-5mm diameter supported by oven.
• Communication: USB, mini usb plug.
• Memory: Internal 1MB, External SD-Card
• Monitor: LCD, color, 2,8?, 320×240 pixels
• Magnification: Camera 140x
• Operating Environment: 0-40°C, max 95% RH, non-condesing
• Weight: 800g - 4.3lbs
• Power Sources: External power supply, 6V, 1.25A, 100-240VAC 50-60Hz, Build in Li-Ion battery pack
• Splicing Capacity: 60 splicing cycles
• Additional Features: Loss estimation, Fiber fault detection, SD-card for logging etc.


The EasySplicer Kit Contents

• EasySplicer - EZ7
• Cleaver - C7
• AC Adapter
• Hand Stripper
• (2) 250um Fiber Holders
• (2) 900um Fiber Holders
• Cary Case
