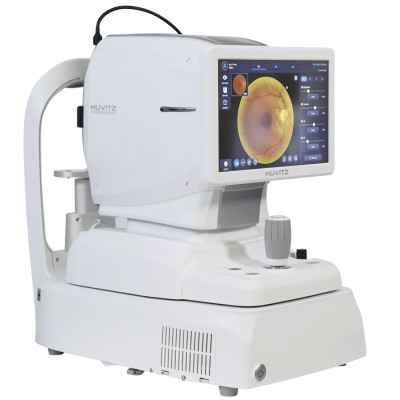

Huvitz HOCT-1F Optical Coherence Tomography with Fundus

Product Specifications

BRAND	Huvitz
MODEL	HOCT-1F
EQUIPMENT CONDITION	New

DESCRIPTION

Everything in the HOCT is intelligent. 3D OCT & Fundus Camera is a fully integrated system combined with a PC. Provides OCT and Fundus data on a screen.
With how easy it is to use, with just one button, you can create a high-speed scanner and a high-quality image, which provides a greater perspective for the ophthalmology clinic. Easy to use and results are outstanding and easily follow. Huvitz All-in-One HOCT will be the icon for leading a new era of Optical Coherence Tomography(OCT).

ADDITIONAL INFORMATION

OCT (Optical Coherence Tomography)

Resolution (in Tissue):
- Z-axis: 6–7 µm
- XY-axis: 20 µm
A-Scan Rate: 68,000 A-scans/sec
Scan Range:
- Fundus: X: 6–12 mm, Y: 6–9 mm, Z: 2.34 mm
- Cornea: X, Y: 6–9 mm
3D Acquisition Time: 1.4 sec (Fastest mode, A512 × B96)
Minimum Pupil Diameter: Ø0.1 in / 2.5 mm
Light Source Wavelength: SLD 840 nm
Optical Power at Cornea: ≤650 µW
Scan Patterns:
- Macular: Line, Cross, Radial, Raster, 3D
- Disc: Circle, Radial, Raster, 3D
Fundus Camera
Camera Type: Color
Resolution: 12 MP
Field of View (FOV): 45°
Minimum Pupil Diameter:
- Normal: Ø0.16 in / 4 mm
- Small Pupil: Ø0.13 in / 3.3 mm
Flash: LED
Resolution on Fundus:
- Center: ≥60 lines/mm
- Middle (r/2): ≥40 lines/mm
- Middle (r): ≥25 lines/mm
Common Features
Working Distance: 1.3 in / 33 mm
LCD Display: 12.1", Resolution: 1280 × 800
Dioptric Compensation:
- Full Range: -33 to +33D
- -33 to -7D: with Minus Compensation Lens
- +7 to +33D: with No Compensation Lens
Fundus Surface Imaging: NIR / Enface, FOV: 40° × 30°
Internal Fixation Lamp: LCD
Auto Alignment:
- X, Y for Positioning
- Z for Working Distance
Auto Focusing: Diopter Adjustment
Movement Ranges:
- Horizontal: 70 mm (front/back), 100 mm (left/right)
- Vertical: 1.18 in / 30 mm
- Chinrest (Motorized): 2.44 in / 62 mm
Network Support: DICOM file support (customizable)
Normative Database: To be constructed post-release
Built-in Computer: Yes
Power & Physical Specs
Power Supply: AC 100–240V, 50/60 Hz, 1.6A–0.7A
Dimensions:
- 13(W) × 21(D) × 20(H) in
- 330(W) × 542(D) × 521(H) mm
Weight: 66 lb / 30 kg
Optional Features & Accessories
Anterior Segment Module (optional):
- Scan Patterns: ACA Line, Cornea Radial, Cornea 3D
- Software Analysis: Corneal Layers, Thickness Map, Thickness & Angle
Web Viewer (optional):
- Web-based, Multi-user access
- Supports Progression, Comparison, and 3D Analysis
