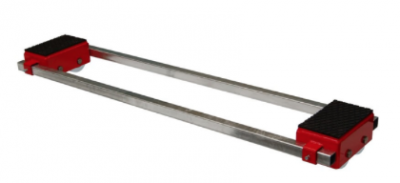

HTS ECO-Skate iXN20S-B

PRODUCT DESCRIPTION

Capacity: 2 x 22,000 (lbs.)
Wheel size: 5.5" X 3.3" Nylon (inch)
Number of wheels: 2 x 4
Load area: 12.6" X 7.5" (inch)
Dimension L x W x H: 18.3" X 8.5" X 7.1"
Adjustability: 8.6" to 70.8" (mm)
Weight: 176 (lbs.) Features
The axles and bearings in the ECO-Skate iN-Series XL are supported and enclosed within the frame. This makes it impossible to bend an axle even if the wheel has been overloaded for a short time. For the ECO-Skate iN-Series XL it is possible to combine any of the different capacities within the range. The total capacities equals the sum of the single capacities of each ECO-Skate. The skates are equipped with HTS nylon wheels as standard and can also be purchased separately.
The ECO-Skate iN-Series XL have the following features

• Single supported wheels
  All wheels are single supported in the wheel boxes. No axle can bend if overloaded.
• Steering and alignment bar
  The iN-Series XL load moving systems are standard equipped with steering and alignment bars. Special lengths are available on request.
• Strong alignment bars
  The two supplied alignment bars are very strong and zinc plated.
• Combinable
  All ECO-Skate i-Series XL can be combined with each other suitable ECO-Skates such as BALANCE, i-Series XL and DUO XL. The sum of the single skates equals the total load capacity.
• HTS Nylon wheels
  All ECO-Skate iN Series load moving systems are standard equipped with HTS nylon wheels which have a very low rolling resistance.

For all cases where a standard product is not sufficient, we offer special tailor made solutions to fit the customers needs.
