Hogg Davis OLT52B Overhead Line Tensioner | Rent, Finance, or Buy

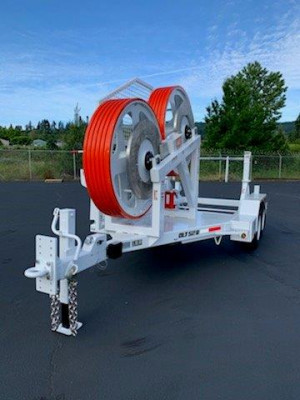

Hogg Davis OLT52B Overhead Line Tensioner

Hogg Davis OLT52B Overhead Line Tensioner
Product Specifications
DESCRIPTION
This OLT 52B Overhead Line Tensioner is designed to install single conductor. The bullwheels are canted as per IEEE specifications to prevent unnecessary twisting of the conductor during installation. The bullwheels are outfitted with replaceable Diameter Molded segments.
ADDITIONAL INFORMATION
Specifications:
  • Multi Groove Bullwheels
  • Rated at: 5000 lbs
  • Jackstands: Manual
  • Unit Length: 17’ 11”, Width: 96”
  • Tandem Leaf Spring Axles
  • Electric Brakes
  • 16,000 lbs GAWR
  • 235/85/16 14 ply tires
  • Reel Capacity: 12,000 lbs.
  • Maximum Reel Width: 56”
  • Maximum Reel Diameter: 96”
  • Anti-Overspin Brake: 16”
  • Diameter (With lining): 54”
  • Lining: (4) Urethane Diameter Molded
  • Groove diameter: 1.5”
  • Braking: (2) Hydraulic Discs
