Hioki PW3198-02/500 | Rent, Finance, or Buy

Hioki PW3198-02/500

Hioki PW3198-02/500
Specifications
BRAND  Hioki
PRODUCT DESCRIPTION

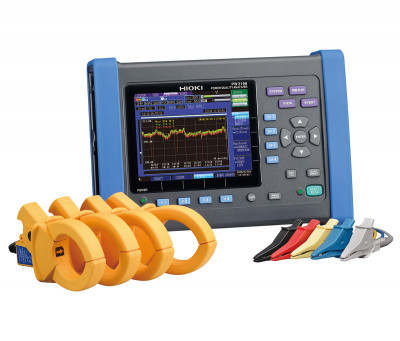

The Hioki PW3198-02/500 is a highly accurate and capable power quality analyzer and comes equipped with features that make it stand out in the market.
Here are the key features of the Hioki PW3198-02/500:
  • Verify power problems in accordance with the IEC61000-4-30 Class A standard
  • High accuracy and continuous gapless recording  (V: /-0.1% of nominal voltage, A and W: /-0.2% rdg. /-0.1% f.s.)
  • CAT IV 600V - safe enough for incoming power lines
  • Broadband voltage range lets you measure even high-order harmonic components of up to 80 kHz
  • Wide dynamic range from low voltages up to 1300V (3P4W line-to-line voltage)
  • Maximum 6000V transient overvoltage up to 700kHz
  • LAN, USB and SD card interfaces
  • Optional GPS BOX for synchronizing multiple devices
