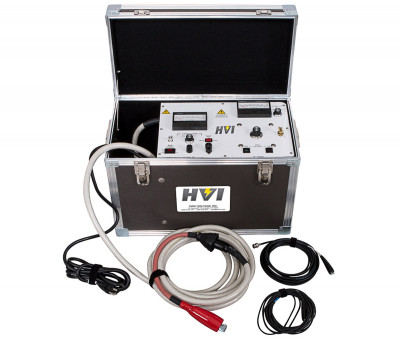

High Voltage, Inc. PFT-503CM

PRODUCT DESCRIPTION

he High Voltage, Inc. PFT-503CM, portable AC hipot test sets for apparatus testing are ideal for a variety of field and repair shop testing applications. Inexpensive, compact and light weight, the High Voltage, Inc. PFT-503CM, AC hipot units are rugged and reliable.
The High Voltage, Inc. PFT-503CM provides continuously adjustable AC voltage typically used to provide a pass/fail, AC over-voltage withstand test on high voltage apparatus, like vacuum bottles and interrupters, switch gear, bus duct, motorized vacuum switches, reclosers, bushings, fuses and arrestors, linemans safety products, small transformers, electrical components and motors., and any other equipment requiring AC voltage proof test.
High Voltage, Inc. PFT-503CM - Features and Specifications:

• Single, portable unit
• Adjustable output voltage and can be used up to 3kVA
• External interlock and zero start safety interlock
• Easy-to-use controls
• Secondary connected dual-range voltmeter
• 1kVA resistive load up to 3 kVA capacitive load
• Three-range current meter with isolated guard/ground return circuit
• Shielded output cable
• Automatic transit protected meters
• Rugged case with cushion grips

Specifications

• Input: 120 V, 60 Hz, 15A
• HV Output: 0-50 kVac, 1kVA resistive load
• No Load Current: 20 mA
• Output Termination: 20 ft. (6m) long shielded output cable
• Duty: 3kVA: 1 hour ON, 1 hour OFF. 1kVA: continuous
