High Resolution Stereo Zoom LED Digital

Product Specifications

BRAND	Fein Optic
MODEL	FZ6D-ILST

DESCRIPTION

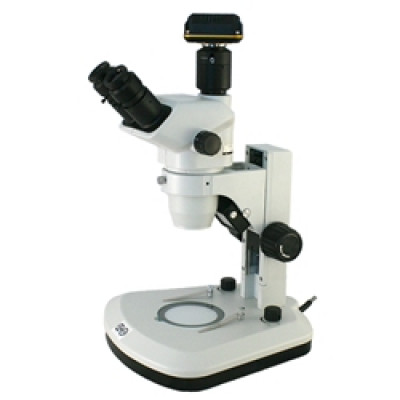

The FZ6 high resolution stereo zoom microscope on an ergonomic LED track stand includes your choice of digital camera and software.

Microscope Viewing Head: Trinocular 45º inclined viewing head rotates 360º. Interpupillary adjustment from 54mm - 76mm. Beam splitter splits light between left eyetube and trinocular port while right eyetube goes dark. Includes 0.5x c-mount adapter.
Eyepieces: Includes high eyepoint widefield focusable 10x eyepieces, FN 22 with +/-5 diopter adjustment on each eye. Eyepieces accept a 24mm diameter reticle.
Objective Lenses: Zoom range of 0.67x - 4.5x.
Zoom Ratio: 6.7:1
Total Magnification: 6.7x - 45x. Magnification can be increased or decreased with auxiliary lenses. See magnification chart at bottom of page for details. Note that when changing eyepieces the magnification of the camera will not be altered.
Working Distance: 100mm. Can be adjusted from 26mm - 200mm depending on auxiliary lens utilized. See magnification chart below.
Field of View: 32.8mm at 6.7x and 4.9mm at 45x.
Stand: Track stand with transmitted and reflected LED illuminators. Top light has 15 LED lights. Vertical travel of 110mm.
Specimen Stage: Includes 100mm glass stage plate and two stage clips.
Focusing: Precision guide rack and pinion focusing with tension adjustable focus knobs.
Illumination: Top and bottom LED illuminators with dual intensity control and on/off switches. Top LED light contains 15 LED individual lights. 100V~240V.
Camera: Select from five options on the table below for the camera:

Camera Megapixels Pixel Size Frames Per Second Sensor Software
DCM3 3.2 3.2µm x 3.2µm 45fps @ 680x510
32fps @ 1048x769
11fps @ 2048x1536 1/2" CMOS Image Capture & Measurement
(PC Only)
DCM5
5 2.2µm x 2.2µm 60fps @ 640x480
18fps @ 1280x960
5fps @ 2592x1944 1/2.5" CMOS Image Capture & Measurement
(PC Only)
Subra Full HD
2.2 5.5µm x 5.5µm
30fps @ Full HD
1920x1080 2/3" CMOS Back Illuminated GRYPHAX Image Capture & Measurement
(PC & MAC)
Arktur 8 2.4µm x 2.4µm
50fps @ Full HD 1920x1080
30fps @ 3840x2160 2/3" CMOS Back Illuminated GRYPHAX Image Capture & Measurement
(PC & MAC)
Naos 20 2.4µm x 2.4µm
50fps @ 1800x1200
30fps @ 2700x1800 1" CMOS Back Illuminated GRYPHAX Image Capture & Measurement
(PC & MAC)

Microscope Size: 11.75" W x 12" D x 16" H
Warranty: 5 Years. 1 Year warranty on camera.
Includes: Dust Cover

FZ6 Stereo Microscope Magnification Chart:

Auxiliary Lens
Working Distance
10x Eyepieces
15x Eyepieces
20x Eyepieces
Magnification Field Size
Magnification Field Size
Magnification Field Size
1x (None)
100mm
6.7x - 45x
32.8mm - 4.9mm
10.1x - 67.5x
23.9mm - 3.6mm
13.4x - 90x
17.9mm - 2.7mm
0.5x
177mm
3.4x - 22.5x
65.7mm - 9.8mm
5x - 33.8x
47.8mm - 7.1mm
6.7x - 45x
35.8mm - 5.3mm
0.7x
120mm
4.69x - 31.5x
46.9mm - 7mm
7x - 47.25x
34.1mm - 5.1mm
9.38x - 63x
25.6mm - 3.8mm
1.5x 47mm 10.1x - 67.5x
21.9mm - 3.3mm
15.1x - 101.3x
15.9mm - 2.4mm
20.1x - 135x
11.9mm - 1.8mm
2.0x 26mm 13.4x - 90x
16.4mm - 2.4mm
20.1x - 135x
11.9mm - 1.8mm
26.8x - 180x
9mm - 1.3mm
