High Resolution Stereo Zoom HD Digital

Product Specifications

BRAND	Fein Optic
MODEL	FZ6ILST-HD

DESCRIPTION

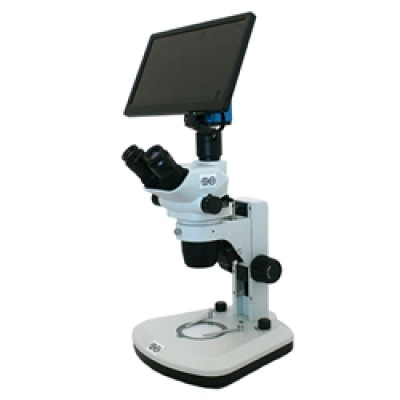

The FZ6 high resolution stereo zoom microscope on a high intensity LED stand includes a high definition HD camera and monitor.

Microscope Viewing Head: Trinocular 45º inclined viewing head rotates 360º. Interpupillary adjustment from 54mm - 76mm. Beam splitter splits light between left eyetube and trinocular port while right eyetube goes dark. Includes 0.5x c-mount adapter.
Eyepieces: Includes high eyepoint widefield focusable 10x eyepieces, FN 22 with +/-5 diopter adjustment on each eye. Eyepieces accept a 24mm diameter reticle.
Objective Lenses: Zoom range of 0.67x - 4.5x.
Zoom Ratio: 6.7:1
Total Magnification: 6.7x - 45x. Magnification can be increased or decreased with auxiliary lenses. See magnification chart below for details. Note that when changing eyepieces the magnification of the camera will not be altered.
Working Distance: 100mm. Can be adjusted from 26mm - 200mm depending on auxiliary lens utilized. See magnification chart below.
Field of View: 32.8mm at 6.7x and 4.9mm at 45x.
Stand: Track stand with transmitted and reflected LED illuminators. Top light has 15 LED lights. Vertical travel of 110mm. Includes dust cover.
Specimen Stage: Includes 100mm glass stage plate and two stage clips.
Focusing: Precision guide rack and pinion focusing with tension adjustable focus knobs.
Illumination: Top and bottom LED illuminators with dual intensity control and on/off switches. Top LED light contains 15 individual LED lights. 100~240V.
HD Camera: 1080p HD camera with direct output to HDMI HD Monitor. Sensor is 1/2.8" CMOS Sony IMX236(C). Pixels 2.8x2.8µm. 60 frames per second at 1920x1080. Binning 1x1. 2mp image capture to SD card (included). USB capture control for Windows (will not work with MAC). Includes camera, software, power adapter 100~240V, HDMI cable, USB mouse.
LCD HD Monitor: 12" LCD HDMI monitor, true 1080P. LED backlight. Monitor mounts directly to HD camera. Includes 110~240V power cord and HDMI cable.
Size: 11.75" W x 12" D x 18" H
Warranty: 5 Years. 1 Year warranty on camera and monitor.

Auxiliary Lens
Working Distance
10x Eyepieces
15x Eyepieces
20x Eyepieces
Magnification Field Size
Magnification Field Size
Magnification Field Size
1x (None)
100mm
6.7x - 45x
32.8mm - 4.9mm
10.1x - 67.5x
23.9mm - 3.6mm
13.4x - 90x
17.9mm - 2.7mm
0.5x
177mm
3.4x - 22.5x
65.7mm - 9.8mm
5x - 33.8x
47.8mm - 7.1mm
6.7x - 45x
35.8mm - 5.3mm
0.7x
120mm
4.69x - 31.5x
46.9mm - 7mm
7x - 47.25x
34.1mm - 5.1mm
9.38x - 63x
25.6mm - 3.8mm
1.5x 47mm 10.1x - 67.5x
21.9mm - 3.3mm
15.1x - 101.3x
15.9mm - 2.4mm
20.1x - 135x
11.9mm - 1.8mm
2.0x 26mm 13.4x - 90x
16.4mm - 2.4mm
20.1x - 135x
11.9mm - 1.8mm
26.8x - 180x
9mm - 1.3mm
