Fein Optic FZ6-HD-LCD Microscope from $92.82/mo

High Resolution Stereo Zoom HD Digital LCD Microscope

High Resolution Stereo Zoom HD Digital LCD Microscope
Product Specifications
BRAND  Fein Optic
MODEL  FZ6-HD-LCD
DESCRIPTION

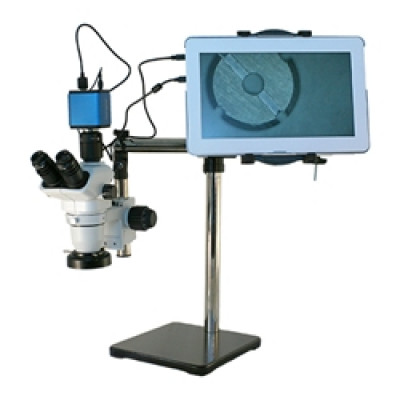

The Fein Optic FZ6-HD-LC stereo zoom high definition digital LCD tablet microscope provides magnification of 5x-67x and the boom stand provides working room for larger objects.
  • Microscope Viewing Head: Trinocular 45º inclined viewing head rotates 360º. Interpupillary adjustment from 54mm - 76mm. Beam splitter splits light between left eyetube and trinocular port while right eyetube goes dark. Includes 0.5x c-mount adapter.
  • Eyepieces: Includes high eyepoint widefield focusable 15x eyepieces, FN 16 with +/-5 diopter adjustment on each eye.  Eyepieces accept a 24mm diameter reticle. 10x and 20x eyepieces are available below.
  • Polarizing Filter: Includes polarizing filter for industrial applications.
  • Objective Lenses: Zoom range of 0.67x - 4.5x.
  • Auxiliary Objective Lens: Includes 0.5x auxiliary lens, WD = 177mm.
  • Zoom Ratio: 6.7:1
  • Total Magnification: 10x - 67.5x without auxiliary lens, 5x - 34x with auxiliary lens.
  • Working Distance:
    • 100mm without auxiliary lens
    • 177mm with auxiliary lens (ideal for soldering & working under the microscope).
  • Field of View: 47.8mm at 5x and 3.6mm at 67.5x
  • Stand: Heavy duty boom stand with square base. Arbor connects focusing holder. Horizontal post is 20.9" long. Vertical post is 23.9" tall with included 8.9" extension post. Lock ring on vertical post. Base dimensions are 11.2" x 32". Weight is 48 lbs. (Option at checkout to remove extension post if not required).
  • Focusing: Focusing holder has coarse and fine focusing adjustment.
  • Illumination: Four quadrant LED ring light reduces glare on metallic samples.
  • HD Camera: 1080p HD camera with direct output to HDMI HD Monitor. Sensor is 1/2.8" CMOS Sony IMX290(C). Pixels 2.9x2.9µm. 60 frames per second at 1920x1080. Binning 1x1. 2mp image capture to SD card (included). Software can be used to capture images and make measurements on a PC (will not work on MAC). Includes camera, software, power adapter 100~240V, HDMI cable, USB mouse. Ability to make measurements on live image.
  • LCD Tablet HD Monitor:13.3" LCD LED Backlight monitor with full HD 1080p resolution, 1920x108 (16.7M colors) and anti-glare. Includes USB cable, HDMI cable, 5V/2A adapter. Connectivity options include headphone out, micro-HDMI, mini DisplayPort, VGA, micro-USB and DC-in. Certified BSMI/CE/FCC/RoHS. Monitor dimensions are 13.6" x 8.9" x 0.4". Articulated arm stand clamp
