High Resolution Stereo Zoom Ball Bearing HD Digital

Product Specifications

BRAND	Fein Optic
MODEL	FZ6BBSQ-HD

DESCRIPTION

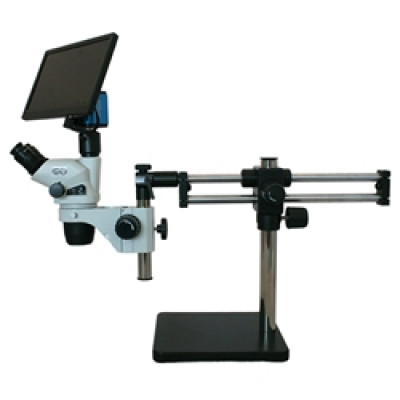

The FZ6 high resolution stereo zoom microscope on a ball bearing boom stand includes a high definition HD camera and monitor.

Microscope Viewing Head: Trinocular 45º inclined viewing head rotates 360º. Interpupillary adjustment from 54mm - 76mm. Beam splitter splits light between left eyetube and trinocular port while right eyetube goes dark. Includes 0.35x c-mount adapter.
Eyepieces: Includes high eyepoint widefield focusable 10x eyepieces, FN 22 with +/-5 diopter adjustment on each eye. Eyepieces accept a 24mm diameter reticle.
Objective Lenses: Zoom range of 0.67x - 4.5x.
Zoom Ratio: 6.7:1
Total Magnification: 6.7x - 45x. Magnification can be increased or decreased with auxiliary lenses. See magnification chart below for details. Note that when changing eyepieces the magnification of the camera will not be altered.
Working Distance: 100mm without auxiliary lens
Field of View: 32.8mm at 6.7x and 4.9mm at 45x.
Stand: Heavy duty ball-bearing boom stand with square base. Base is 11.2" x 10.2" x 1.3". Vertical post is 15" tall. Horizontal poles have smooth ball bearing movement and are 22.4" long from end to end. Includes arbor for connecting focusing holder.
Focusing: Focusing holder has coarse focusing adjustment.
Illumination: Four quadrant LED ring light reduces glare on metallic samples. Option to upgrade to high intensity LED ring light at checkout.
HD Camera: 1080p HD camera with direct output to HDMI HD Monitor. Sensor is 1/2.8" CMOS Sony IMX236(C). Pixels 2.8x2.8µm. 60 frames per second at 1920x1080. Binning 1x1. 2mp image capture to SD card (included). USB capture control for Windows, Mac. Includes camera, software, power adapter 100~240V, HDMI cable, USB mouse. Software can be used to capture images on a PC and make measurements. Software will not work with MAC.
LCD HD Monitor: 12" LCD HDMI monitor, true 1080P. LED backlight. Monitor mounts directly to HD camera. Includes 110~240V power cord and HDMI cable.
Warranty: 5 Years. 1 Year warranty on camera and monitor.

Auxiliary Lens
Working Distance
10x Eyepieces
15x Eyepieces
20x Eyepieces
Magnification Field Size
Magnification Field Size
Magnification Field Size
1x (None)
100mm
6.7x - 45x
32.8mm - 4.9mm
10.1x - 67.5x
23.9mm - 3.6mm
13.4x - 90x
17.9mm - 2.7mm
0.5x
177mm
3.4x - 22.5x
65.7mm - 9.8mm
5x - 33.8x
47.8mm - 7.1mm
6.7x - 45x
35.8mm - 5.3mm
0.7x
120mm
4.69x - 31.5x
46.9mm - 7mm
7x - 47.25x
34.1mm - 5.1mm
9.38x - 63x
25.6mm - 3.8mm
1.5x 47mm 10.1x - 67.5x
21.9mm - 3.3mm
15.1x - 101.3x
15.9mm - 2.4mm
20.1x - 135x
11.9mm - 1.8mm
2.0x 26mm 13.4x - 90x
16.4mm - 2.4mm
20.1x - 135x
11.9mm - 1.8mm
26.8x - 180x
9mm - 1.3mm
