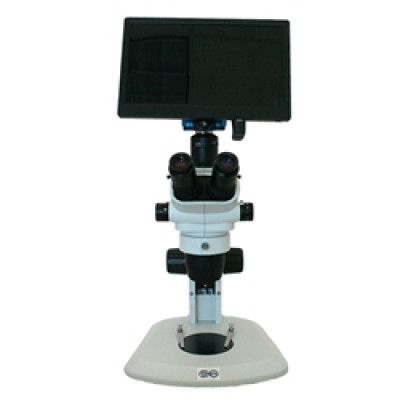

HD Digital Visual Measurement

Product Specifications

BRAND	Fein Optic
MODEL	VM-SMZ168TS-HD

DESCRIPTION

The visual measurement microscope has detent for repeatable measuring purposes and includes your choice of a metric or inch reticle installed in the eyepiece. When ordering select a LED ring light or LED dual pipe lights for your microscope system. HD camera and HD monitor provide a live image where you can make measurements directly on the HD monitor, or on a PC using the included software.
Stereo Microscope Body : 45º inclined viewing head rotates 360º. Interpupillary adjustment from 54-76mm. Trinocular microscope with 0.67x - 4.5x zoom. Beam splitter sends light to the left eyetube and trinocular port when engaged.
Eyepieces: Includes widefield 10x eyepieces, FN22 with +/-5 diopter adjustment on each eye. Eyepiece reticle installed.
Reticle: Measuring reticle comes installed in eyepiece. Your choice of 10mm / 100 division reticle or 0.4" / 100 division reticle. If you would like a different measuring reticle please call. Please see the chart below for the distance provided between each line on the reticle ruler at different magnifications.
Total Magnification Range options: 6.7x - 45x. Alternative magnifications can be obtained using an auxiliary lens.
Working Distance: 100mm
Stand: Track stand includes two stage clips. Stand is ergonomic, with low-profile base. Includes black/white stage plate.
Focusing: Rack and pinion focusing controls, 120mm focusing stroke.
Illumination: Your choice of LED ring light or LED dual pipe light. Select when ordering.
HD Camera & Monitor: 1920x1080 HDMI camera provides 60fps, image capture 2mp to SD card or to PC using the included software. USB connection to computer. Make measurements on computer using software or directly on the included 12" HD monitor.
Warranty: Five year warranty excluding electrical parts. Camera, monitor and illuminator have 1-year warranty.

Zoom Setting
Magnification
10mm / 100 Division Reticle
0.4" / 100 Division Reticle
0.67x
6.7x 0.149mm 0.0060"
1x 10x 0.10mm 0.004"
2x 20x 0.05mm
0.002"
3x 30x 0.033mm 0.0013"
4x 40x 0.025mm 0.001"
4.5x 45x 0.0022mm 0.00089"
