GeoSLAM Horizon with Camera

DESCRIPTION

Faster Data Capture:
The ZEB Horizon is a lightweight scanner that can be used handheld. It can collect 300,000 points per second.
Mapping Hard-to-Reach Areas:
The ZEB Horizon can be used in a variety of environments, including indoors, outdoors, and underground.
Its versatility allows users to lower the scanner into vent shafts or elevate it into ceiling voids, enabling them to capture data in locations that might be difficult or dangerous to reach otherwise.
Versatility and Accuracy:
The ZEB Horizon can be used in a variety of applications, including construction, mining, and forestry.
Its compact design and 100m range make it suitable for both indoor and outdoor surveys.
It provides 3D scanning with a survey-grade relative accuracy of up to 6mm, depending on the environment.
It's also compatible with other LiDAR solutions, like the FARO Focus, offering a complete data capture package.
Ease of Use and Data Processing:
The ZEB Horizon is easy to use, with one-button operation allowing users to start capturing data quickly.
It also comes with GeoSLAM Connect software, which enables users to process point cloud data efficiently.
The data can be easily exported in various formats, making it compatible with a wide range of third-party software for further analysis and enhancements.
In summary, the ZEB Horizon offers a combination of speed, versatility, and accuracy, making it a valuable tool for various applications in the surveying and reality capture industry.


ADDITIONAL INFORMATION

Technical specification

• Range 100m
• FOV 360° x 270°
• Laser Class 1 / λ 903nm
• Protection class IP 54
• Processing Post
• Datalogger carrier Backpack or
• shoulder strap
• Scanner weight 1.45kg
• Scanner points per second 300,000
• No. of sensors 16
• Relative accuracy Up to 6mm ***
• Vertical angular resolution 2°
• Raw data file size 25 - 50MB / minute

DETAIL

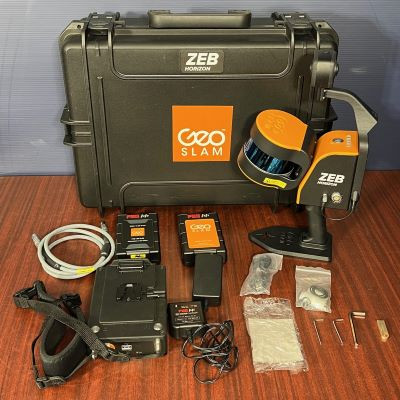

• 1 Zeb Horizon Scanner and Datalogger
• 1 Case
• 2 Batteries
• 1 Charger
• 2 USB Stick
• GeoSlam Connect license key for the rental days Renter will provide the laptop.
