Gentex PureFlo ESM+ PF50 PAPR Respirator System from $50.23/mo

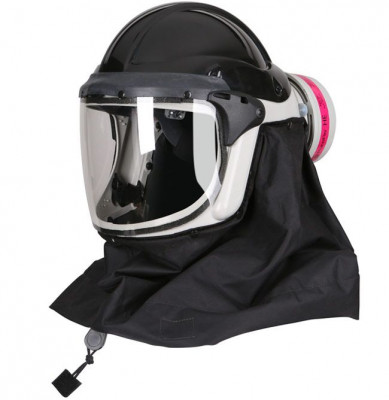

Gentex PureFlo ESM+ PF50 P-Series PAPR

Gentex PureFlo ESM+ PF50 P-Series PAPR
Product Specifications
BRAND  Gentex PureFlo
MODEL  ESM+ PF50
DESCRIPTION
The Gentex PureFlo ESM+ PF50 PAPR P-Series Helmet is a self-contained head mounted powered air purifying respirator designed for light duty industries including pharmaceutical, chemical, laboratory and healthcare. The refined built-in Electronic System Management (ESM) includes an LED status indicator and audible alarm which monitors airflow to alert the wearer of low flow, low battery and need for filter change.
ADDITIONAL INFORMATION
KEY FEATURES
  • No trailing leads, hoses or cables for maximum mobility, reliability and less maintenance.
  • No belt mounted blower unit required which improves comfort and makes the PAPR ideal for use with a range of protective workwear.
  • The unique air circulation system creates a smooth continuous flow of air that draws air from surrounding environment through filter located at rear of helmet.
  • The advanced electronics package within the ESM+ continually monitors all functions and provides a self-diagnostic system check to ensure proper functioning.
  • The improved electronics also provide an increased flow rate at 8.1 CFM/230Lpm.
  • Contains a fully capsuled blower module with a single 7-way IP67* connector between the sidebars and blower/motor unit with a standard internal on/off switch, in addition to having an external power switch option like the standard ESM. *IP67 = 6 – protection against dust / 7- protection against the effect of immersion between 15 cm and 1m
SPECIFICATIONS
  • System Classification: Powered Air-Purifying Respirator (PAPR)
  • Head Protection: N/A
  • Face Shield/ Eye Protection: ANSI Z87.1+
  • Respiratory: NIOSH 42CFR84
  • Filter Type: HEPA (HE) or HEPA/HF/HC *Nuisance OV
  • Flow Rate: 8.1 CFM or 230 Liters/Min
  • Noise Level: Under 70dB
  • Weight:
    • PF50 ESM+ without filter and batteries = 2.482 lbs.
    • PF50 ESM+ w/ filter (no batteries) = 2.910 lbs.
    • PF50 ESM+ complete w/ batteries and filter = 3.657 lbs.
  • Assigned Protection Factor (APF): APF 1000 Neck Cape demonstrated by SWPF study/testing
  • FM Nonincendive US and Canada: Class I, II, III, Div 2, Groups ABCDEFG
  • Head Size: Range 6 3/8” - 7 7/8” or 54 - 61cm
  • Charger Specifications: 110V/240V AC/50 or 60 Hz/200 mA
  • Battery Type: 5 Cell Nickel Metal Hydride 6v 2.2 Ah per pack
  • Battery Duration: Up to 7 Hours with Two Batteries
  • Recharge Time: 2.5 Hours from Full Discharge
  • NOTE: Rental comes with (4) Batteries total; two for use, while two are recharging
