GE Healthcare OEC 9800 Plus C-Arm from $780.64/mo

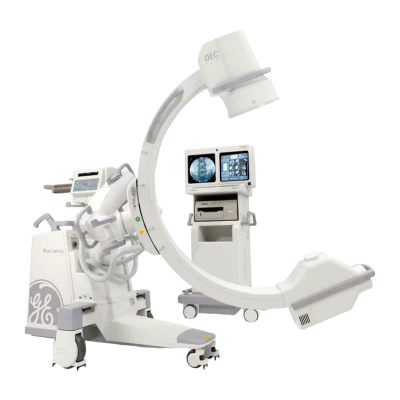

GE OEC 9800 Plus C-Arm

GE OEC 9800 Plus C-Arm
Product Specifications
BRAND  GE Healthcare
MODEL  OEC 9800 Plus
DESCRIPTION
The GE OEC 9800 Plus C-Arm is a mobile X-ray system designed for various medical applications, including pain management, orthopedic, vascular, neurovascular, and cardiac surgeries. This system offers several features, such as a touch screen interface, low X-ray dosages, a 15kW generator, and 1K x 1K high-resolution images. It is built to provide consistent uptime, durability, and superb image quality, making it suitable for a wide range of clinical applications. The OEC 9800 Plus is a trusted and widely used C-Arm system, offering advanced imaging technology and versatility for diagnostic and interventional procedures.

The OEC 9800 and OEC 9800 Plus are both mobile C-arm systems manufactured by GE Healthcare. The OEC 9800 Plus is an enhanced version of the OEC 9800, offering various improvements and additional features. Here are some key differences and features of the two systems:
  • OEC 9800 Features:
    • The OEC 9800 is noted for its durability and versatility, designed for multiple applications such as Pain Management, Orthopedics, Vascular, Neurovascular, and Cardiac procedures[5].
    • It offers superb image quality from GE Healthcare’s proprietary image I.Q., a simple user interface for improved efficiency, and low-dose features to ensure the right image at the right dose[5].

  • OEC 9800 Plus:
    • Offers several hardware and software enhancements compared to the OEC 9800.
    • These features contribute to enhanced image quality and advanced imaging capabilities during various medical procedures.
      • Including:
        • Improved image processing
        • automatic brightness stabilization
        • real-time digital subtraction.
ADDITIONAL INFORMATION
FEATURES:
  • 9”/6”/4.5” Image Intensifier
  • Rotating Anode X-Ray Tube
  • High-Resolution CCD Camera, 1K x 1K x 12-bit Imaging
  • 0.3/0.6 mm Focal Spot 5.3kW/41kW
  • Dual High Resolution 16” Monitors
  • Touch Screen Controls (right monitor)
  • 400 Image Storage
  • Patient Annotation
  • 16 Image Collage
  • 32 Frames Noise Reduction
  • Sharpen, Negate, Zoom
SPECIFICATIONS:
  • C-Arm Dimensions:
    • Height: 69 / 87 in (1734 / 2191 mm)
    • Width: 33 in (838 mm)
    • Length: 79 in (1994 mm)
    • Weight: 720 lbs
      ​
  • Workstation Dimensions:
    • Height: 64 in (1632 mm)
    • Width: 27 in (692 mm)
    • Depth: 27 in (692 mm)
    • Weight: 430 lbs

  • Smart Window:
    • Smart window technology dynamically sense the collimator position and automatically adjusts the sampling windows size to optimize the image quality further.
      • Dual-leaf tungsten collimator
      • Levels contrasts
      • Adjusts the brightness

  • Smart Metal:
    • Smart Metal is a unique innovation from GE. After Smart Metal is initialized, optimized image resolutions are maintained even with the introduction of metal objects into the X-ray imaging field.
      • No need for manual brightness and contrast adjustments are needed.
      • Reduces system sensitivity to metal.

  • AutoTrak:
    • During live fluoroscopy procedures it is important to keep maximum visibility regardless of the patient's anatomy moves. With the introduction of AutoTrak, the sampling window automatically moves with the anatomy, ensuring excellent images regardless of collimation or centering. If the subject anatomy moves within the field of view, AutoTrak will maintain the correct exposure, even if the anatomy moves to the edge of the imaging field or is improperly collimated.
      • Detect subject anatomy with dynamic sampling window.
      • Reduction of dark images and burn-out.
      • Image stabilization means fewer images and lower doses to physicians and patients.
      • True point-and-shoot technology in most imaging situations.

  • GE 9800 Plus Specifications:
    • X-Ray System
    • Specialty Packages Available
      • GSP
      • ESP
      • ESP 8 FPS
      • Vascular
      • Vascular 8/15 FPS
      • Neurovascular 30 FPS
      • Cardiac 30 FPS
      • Super C
        ​
  • Generator:
    • 60 kHz High frequency
    • 15 kW full-wave
    • Up to 120 kVp
    • Up to 75 mA for radiographic film exposures.
    • Continuous fluoro boost mode up to 20 mA
    • Pulsed fluoro mode
    • Pulsed fluorography mode up to 40 mA. (optional)
    • Full power from outlet:
      • 50 Hz or 60 Hz
      • 100V-15A to 240V-10A.
    • Patented energy buffer design.

  • X-Ray Tube:
    • Rotating anode X-ray tube.
    • Focal spots: 0.3 mm and 0.6 mm.
    • Anode heat capacity: 300,000 HU.
    • Anode cooling rate: 60,000 HU/min.
    • Housing heat capacity: 1,600,000 HU.
    • Anode diameter: 3.1 in.
    • Anode angle: 10°.
    • X-Ray tube cooling fan. (Vascular, Neurovascular & Cardiac units.)

  • Collimator:
    • Iris collimation with dual opposing semi-transparent leaf shutters allows elliptical, round, and rectangular collimation.
    • Minimum beam size < 5 X 5 cm2.
    • Iris and shutters are continuously variable.
    • All functions are remotely controlled from the C-Arm control panel.

  • Fluoroscopy Mode:
    • Focal spot: 0.3 mm
    • kVp range: 40 – 120 kVp
    • mA range: 0.2 – 10 mA normal mode
    • mA range: 0.2 – 20 mA continuous fluoro boost mode.
    • Auto and manual modes.
    • Continuous, one-shot, or pulsed operation.
    • ABS varies mA, kVp, and camera gain.
    • User specific ABS tables

  • Pulsed Fluoroscopy Mode:
    • Focal spot: 0.3 mm.
    • kVp range: 40 – 120 kVp.
    • mA range: 0.2 – 10 mA
    • Pulse rate: 1, 2, 4, or 8 pulses per second.
    • Pulse width: 30 or 50 milliseconds.
    • Computer-controlled ABS, mA, kVp, and camera gain.

  • Pulsed Fluorography Mode (OPTIONAL):
    • Focal spot: 0.3 mm.
    • kVp range: 40 – 120 kVp.
    • mA range: Up to 40 mA
    • Pulse rate: 1, 2, 4, or 8 pulses per second.
    • Pulse width: 30 or 50 milliseconds.
    • Computer-controlled camera iris, mA, kVp, & camera gain.

  • Digital Spot Mode:
    • Focal spot: 0.3 mm.
    • kVp range: 40 – 120 kVp.
    • mA range: 1.0 – 75 mA.
    • Automatically terminates exposure and stores enhanced image to storage archival disk.

  • Radiographic Mode:
    • Focal spot: 0.3 mm or 0.6 mm.
    • Focal spot automatically selected.
    • kVp range: 50 – 120 kVp.
    • 0.3 mm - mAs range: 1 – 100 mAs.
    • 0.6 mm - mAs range: 110 – 300 mAs.

  • Video Imaging System - Image Intensifier
    • 9 in Image Intensifier
      • Tri-mode 9 in/6 in/4.5 in image intensifier
        • 9 in. 2.3 lp/mm.
        • 6 in. 3.2 lp/mm.
        • 4.5 in. 3.8 lp/mm.
      • DQE: 65%. (typical)

  • 12" Image Intensifier. (OPTIONAL):
    • Tri-mode 12 in/9 in/6 in image intensifier:
      • 12 in. 1.7 lp/mm.
      • 9 in. 2.3 lp/mm.
      • 6 in. 3.0 lp/mm.
    • DQE: 65%. (typical)

  • Video Camera:
    • High resolution CCD camera.
    • 1,004 x 1,004 pixels.
    • Full frame capture.
    • 360° motorized rotation.
    • On-screen orientation indicator. (real-time feedback without fluoro.)
    • Left-right image reversal
    • Top-bottom image reversal.
    • Negative mode.
    • Computer-controlled features:
      • Gain
      • Blanking
      • Camera iris

  • Video Monitors:
    • Dual 16 in, black etched, anti-glare, anti-static.
    • Touch Screen Display.
    • Ambient room light sensor.
    • Multi-LED X-ray "ON" indicator.
    • Remote window/level controls.

  • Hardcopy Options:
    • Thermal printer. (OPTIONAL)
    • DICOM (OPTIONAL)
    • Image Capture Device. (OPTIONAL)
    • Laser Aiming Device. (OPTIONAL)
