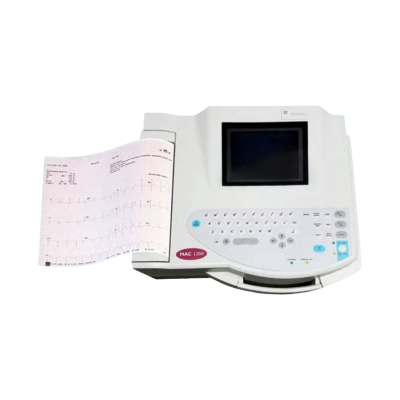

GE MAC 1200 Resting ECG/EKG Electrocardiograph System

Product Specifications

BRAND	GE Healthcare
MODEL	1200 Resting ECG/EKG

DESCRIPTION

The GE MAC 1200 is a digital 12-lead EKG Machine for hospitals, clinics, and offices, offering comprehensive ECG solutions with advanced algorithms and seamless connectivity to CS and MUSE Cardiology Information Systems. It ensures maximum quality and convenience, with easy transmission of 12-lead ECGs to PCs or CardioSys/MUSE CV systems. Equipped with electronic utilities like automatic baseline adjustment and the anti-drift system (Cubic Spline and ADS), it guarantees artifact-free recordings. The machine initiates recording by automatically adjusting the baseline position based on the signal and continuously monitors and corrects the baseline position with the anti-drift system (Cubic Spline) throughout the process.

ADDITIONAL INFORMATION

FEATURES:

Flexible Configuration: The system can be configured to seamlessly integrate into various healthcare settings and workflows.
Networked EKG Data Access: Allows access to EKG data gathered across a provider network, ensuring high-quality and continuous patient care.
Comprehensive EKG Capabilities: Offers a complete solution for all EKG requirements, from waveform display to interpretive analysis.
Waveform LCD Display: Provides a clear, easy-to-read waveform display for efficient monitoring.
Interpretive EKG Analysis: Delivers advanced interpretive capabilities for accurate EKG diagnosis.
Full-Size Paper Reports: Generates detailed, full-size printed reports for comprehensive documentation.
Portable and Lightweight: Compact, lightweight design with a built-in battery for enhanced mobility.
Flexible Configurations: Allows customization with various combinations of measurements, interpretation, and memory features.
Simultaneous 12-Lead Acquisition: Captures and analyzes 12-lead ECG data simultaneously for comprehensive assessment.
Compact and Upgradable: Designed with a small footprint and field-upgradable capabilities to adapt to evolving needs.

SPECIFICATIONS:
Physical Specifications:

Width: 14.5 in. (370 mm)
Height: 3.7 in. (94 mm)
Depth: 12.6 in. (320 mm)
Weight: 12.4 lb. (5.6 kg) with graphics display and battery.

Signal Processing:

Acquisition: 12 leads – simultaneously.
Signal input: Type CF according to IEC.
Digital sampling rate: 1000 samples/second/channel.
Dynamic range: Differential signals for AC voltage ±, 10mV Superimposed DC voltage (Polarization voltage) ±600mV.
Resolution: 5 uV.
Frequency response:0.04 – 150 Hz.
Common mode rejection:> 140 dB.
Input impedance: > 100 M ohms.
Leakage current: < 10uA.
Pacemaker detection sensitivity: All leads, duration 0.1 – 2.5 ms, amplitude > 5 mV.

Display:

Type: LCD 320 x 240 pixel, backlit, Contrast adjustable.
Displayed data: Selected lead group, operation mode, lead check, heart rate, AC filter, muscle her, ADS, gain, speed, name, ID, 3 ECG waveforms.
Type: Thermal array print head.
Resolution: Vertically 8 dots/mm horizontally 25um at 25 mm/s.
Paper: 8.5 x 11 inch.
Writer speed: 5, 25, 50 mm/s.
Paper type: Z-fold.

Keyboard:

Type: Membrane keypad with tactile feedback / 46 keys.

Special Functions:

Anti Drift System (ADS): Automatic compensation of baseline fluctuations caused by polarization voltage fluctuations at the electrodes.
Baseline adjustment: ECG presentation on the averaged baseline.
Electrode monitoring: Audible and visual indication on the LCD of disconnected electrodes or fine break.
Every single electrode is monitored.
Copy: In the automatic 12 lead modes, after ECG, recording, copies of the ECG can be printed.
Test: Automatic performance test upon power up, including verification of the signal path starting at the signal input.

Power Supply:

Ratings: 10 – 120 V (0.32A) / 220 – 240 V (0.16A).
Frequency: 49 – 65 Hz.
Battery type: NiCad, 18V, 1.4 Ah.
Battery charge time: 4 hours.
