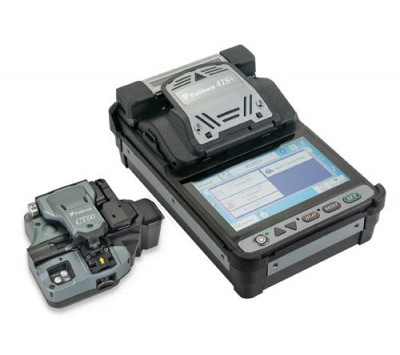

The Fujikura 41S+ is a fully ruggedized, active cladding alignment fusion splicer. Core sensing loss estimation technology provides the most accurate assessment of splice loss available in any active cladding alignment splicer in the world. Enabled by Warm Splice Imaging (WSI), the 41S+ can determine the accuracy of core alignment by evaluation of the splice during the heating process. This technology delivers splice loss estimates with a greater level of accuracy as those based on only cladding alignment. The new Active Fusion Control (AFC) technology improves splice losses for fibers that possess a poor cleave angle. Combined with Active Blade Management between the splicer and cleaver, the Fujikura 41S+ contains a robust set of splicing features that will reduce the likelihood of poor splice installations or repairs. A 6-second splice time and 25-second shrink time offers unmatched speed and productivity, while an easy-to-use touchscreen monitor provides simple and intuitive menu navigation. Interchangeable sheath clamps or fiber holders provide versatility for user preference, and compatibility with fusion installable connectors. The extended-life battery is rated for up to 200 splice and heat cycles. Long-life electrodes, lasting 5,000 splices, help minimize downtime for replacement and stabilization. The large 5” monitor provides a crystal clear image, even in the brightest sunlight. Software updates are accomplished via the internet allowing users to quickly update their software as new splice programs become available.
ADDITIONAL INFORMATION
Warm Splice Imaging (WSI) loss estimation technology
Improved real-time arc control for fibers with poor cleave angles
Bluetooth enabled cleaver management
Two camera, active cladding alignment
5" touchscreen monitor
Interchangeable sheath clamps and fiber holders
Fully ruggedized for shock, moisture and dust resistance
Extended-life electrodes, 5,000 splices, exchangeable without tools
