Fujikura FSM-70S

DESCRIPTION

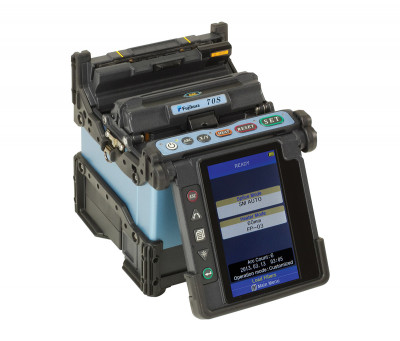

The Fujikura FSM-70S is a fully ruggedized, core alignment fusion splicer, providing consistent, low loss, splice performance.
The fresh design on this new Fujikura FSM-70S fusion splicer streamlines the steps required to complete splices, resulting in greater productivity. The configurable automation features on this single fiber fusion splicer allow you to customize the operation of the machine to best suit your particular splicing technique and process.
The Fujikura FSM 70S fusion splicer also sports a new programmable automatic wind protector which closes and begins the splicing process after clamping the fibers in position or when the set button is pressed. Once the splice is completed, not only is the wind protector opened, but one of the sheath clamps, you decide which, is automatically raised making removal of the fibers fast and easy!
Similarly, the clamshell design of the tube heater on the FSM 70S clamps the splice protection sleeve and applies heat from both sides which results in a reduced shrink time of just 14 seconds.

Specifications

• Automated and programmable wind protector
• 14-second automated tube heater
• Fully ruggedized for shock, dust and moisture
• Li-Ion battery with 200 splices/shrinks per charge
• 5 mm cleave length for splice on connector or small package needs
• Sheath clamp or fiber holder operation
• Multi-function transit case with integrated workstation
