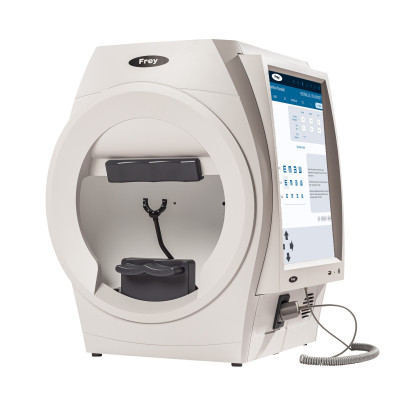

Frey AP-600 Perimeter

Product Specifications

BRAND	Frey Medical
MODEL	AP-600

DESCRIPTION

The AP-600 Automated Perimeter is a modern diagnostic device for fast, precise visual field testing using both static and kinetic perimetry, with advanced software that ensures high test reliability and intuitive user operation. It automatically monitors patient fixation via the Heijl-Krakau method or a built-in digital camera, enabling continuous pupil tracking and fixation control throughout the exam. The system supports various test result presentations, including regression analysis, and emulates Goldmann perimetry for kinetic assessments.

ADDITIONAL INFORMATION

Device Type

Automated Perimeter

Test Specifications

Maximum Temporal Range: 90 degrees
Stimulus Duration: 200 ms / 500 ms or 0.1–9.9 seconds
Visual Field Testing Distance: 11.81 inches
Background Illumination:
- 31.5 ASB White
- 10 ASB White
- 315 ASB Yellow
Stimulus:
- Size: Goldmann I, II, III, IV, V
- Color: White, Green, Red, Blue
- Presentations:
  - White-on-White
  - Red-on-White
  - Green-on-White
  - Blue-on-White
  - Blue-on-Yellow (SWAP)

Test Strategies

Threshold:
- TIA-Superfast
- TIA-Fast
- TIA-Standard
- TIA-SWAP
- Full Threshold
- Fast Threshold
- Foveal Threshold
Suprathreshold:
- Two Zone
- Three Zone
- Quantify Defect

Test Modes

Age Corrected
Threshold Related
Single Intensity

Test Fields

Threshold:
- Central 24-2
- Central 24-2C
- Central 10-2
- Central 30-2
- Peripheral 60-4
- Macula
- Nasal Step
Suprathreshold:
- Central 40 Point
- Central 64 Point
- Central 76 Point
- Central 80 Point
- Armaly Central
- Nasal Step
- Peripheral 60 Point
- Full Field 81 Point
- Full Field 120 Point
- Full Field 135 Point
- Full Field 246 Point
- Armaly Full Field
- Superior 36 Point
- Superior 64 Point
- Esterman Monocular
- Esterman Binocular
- Gandolfo

Fixation Control

Heijl-Krakau blind spot monitor
Video camera eye preview
Digital Eye Tracking (DETect)
Head Tracking
Vertex monitoring

Software Features

Foveal Threshold Testing
EyeSnap Function
Automatic Pupil Measurement
Near Vision Test
Single Field Analysis (SFA)
Custom Static & Kinetic Test Patterns
Glaucoma Hemifield Test (GHT)
Field of View Index (FVI)
Serial Field Overview
Manual Kinetic Testing
DICOM Export
Remote Diagnostics & Software Loading
DICOM OPV (Ophthalmic Visual Field)
User-Defined Results Storage Location
IOD (Information Definition)
OPV IOD Advanced Indices
DICOM Worklist Modality
Progression Analysis

Device Features

Display: 17-inch diagonal touch-screen LCD
Keyboard/Mouse Support: Yes
Networking: LAN and Wireless
Chinrest: Automated movement (up, down, left, right)
Speakers and Microphone: Built-in
Dimensions:
- Height: 24.92"
- Width: 22.28"
- Depth: 15.59"
- Weight: 52.8 lbs
