Ford E-450 Medical Exam Room from $8,119.49/mo

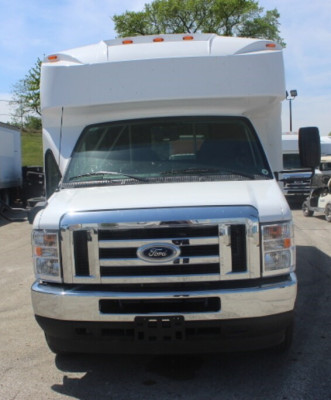

Ford E-450 28' Mobile Medical Box Van with Exam Room

Ford E-450 28' Mobile Medical Box Van with Exam Room
Product Specifications
BRAND  Ford
MODEL  E-450
DESCRIPTION
This 2025 Ford E-450-based mobile medical unit is designed for efficient, accessible general medical exams. The 20' x 8' box includes a fully equipped exam room, restroom, and a waiting/reception area. Accessibility features such as a Braun hydraulic wheelchair lift and ADA-compliant design make it suitable for all patient types. With robust insulation, seamless fiberglass walls, high-quality interior finishes, and a reliable power system, this mobile clinic ensures professional-grade healthcare delivery on the move.
ADDITIONAL INFORMATION
  • Medical Functionality: Exam room with table, sink, cabinetry, stool; waiting area with bench seating, desk, fridge.
  • Accessibility: Braun wheelchair lift with safety interlock, wide entry and lift doors.
  • Restroom: Includes toilet, sink, dispensers, and roof vent.
  • Power System: Onan 7kW generator, 240V breaker box, 12V/120V outlets, battery charger, shoreline cord.
  • Climate Control: Dual 15,000 BTU rooftop A/Cs with heat (12,000 BTU each), remote control.
  • Safety Equipment: Fire extinguishers, smoke/CO detector, first aid kit, backup camera with LCD monitor, and FMVSS decals.
  • Interior: Anti-microbial FRP wall panels, Altro seamless commercial flooring, solid wood cabinetry, laminated countertops.
  • Training & Warranty: Virtual training included; 5-year/100k-mile structural warranty and 3-year/36k-mile conversion warranty.
SPECIFICATIONS
  • Make/Model: Ford E-450 Gasoline
  • Wheelbase: 212"
  • OEM Seats and Mirrors
  • Exhaust rerouted to rear corner
  • Rear bumper: 10-gauge steel, powder-coated black
  • Body Length: 20’ | Overall Length: 28’3” | Width: 8’
  • Construction: Powder-coated steel cage, laminated Azdel/Filon fiberglass panels, 1.5" solid foam insulation
  • Roof: One-piece composite
  • Subfloor: PerformMAX 500 panel with protective overlay
  • Exterior: Seamless fiberglass, welded skirt sub-structure
  • Doors: 36” main entry, double wheelchair doors (45” x 70” opening)
  • Windows: FMVSS-compliant with interior privacy shades
  • Lighting: All LED (interior & exterior), DOT markers, entry lighting
  • Lift: Braun hydraulic with manual backup & seatbelt
  • Safety: Intermotive Interlock, FMVSS 403/404 compliant
  • Tanks: Fresh, gray, and black water
  • Fixtures: Stainless steel sinks, water heater, water pump, tank monitor
  • Includes: Sewer hose, fittings, and water hose kit
RENT, FINANCE AND BUY OPTIONS

Rent for short-term needs, finance the purchase by leasing, or just purchase outright.

Offered by Rick at Supplier #96973 in Marana, AZ
