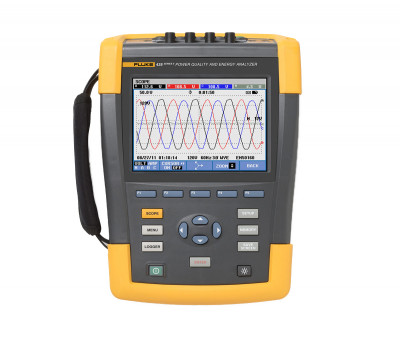

Fluke 435 Series II

DESCRIPTION

Power troubles can spell disaster if not detected quickly and resolved in time. The Fluke 435 II is the perfect solution to help you do just that. A robust and feature-packed tool, the Fluke 435 Series II Power Quality and Energy Analyzer is the popular, award winning answer to your power based issues.
The Fluke 435 Series II helps locate, predict, prevent, and troubleshoot power quality problems in three-phase and single-phase power distribution systems. Additionally, the Fluke-patented energy loss algorithm, Unified Power Measurement, measures and quantifies energy losses due to harmonics and unbalance issues, allowing the user to pinpoint the origin of energy waste within a system.
Fluke 435 Series II - Features and Specifications:

• Rugged case - shock proof with integrated protective holster
• Drip and dust proof IP51 according to IEC60529 when used in tilt stand position
• Shock and vibration Shock 30 g, vibration: 3 g sinusoid, random 0.03 g 2 /Hz according to MIL-PRF-28800F Class 2
• Display size: 127 x 88 mm (153 mm/6.0 in diagonal) LCD Resolution: 320 x 240 pixels Contrast and brightness: user-adjustable, temperature compensated
• Operating Temperature - 0?C ~ 40?C; 40?C ~ 50?C, excluding battery
• Warranty: Three years (parts and labor) on main instrument, one year on accessories

Vrms (AC DC):

• Measurement Range: - 1 V to 1000 V phase to neutral
• Resolution ? 0.01 V
• Accuracy - ?0.1% of nominal voltage

Vpk:

• Measurement Range: - 1 Vpk to 1400 Vpk
• Resolution ? 1 V
• Accuracy - 5% of nominal voltage

Specifications

• Number of inputs: 4 (3 phases + neutral) dc-coupled
• Maximum input voltage: 1000 Vrms
• Nominal voltage range: Selectable 1 V to 1000 V
• Max. peak measurement voltage: 6 kV (transient mode only)
• Bandwidth: > 10 kHz, up to 100 kHz for transient mode
• Current Range: 0.5 Arms to 600 Arms / 5 Arms to 6000 Arms with included i430flex-TF
• Maximum sampling speed: 200 kS/s on each channel simultaneously
