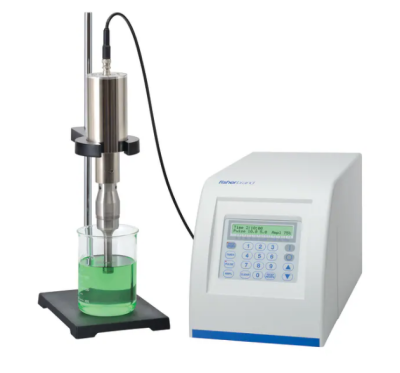

Fisherbrand™ Model 505 Sonic Dismembrator and 0.5-15 mL Microtip

PRODUCT DESCRIPTION

The Fisherbrand Model 505 Sonic Dismembrator is a high-power, programmable ultrasonic processor designed for demanding laboratory applications such as nanotechnology, cell disruption, mixing, and homogenization. Delivering 500 watts of ultrasonic power, it provides significantly more energy than lower-power systems while maintaining precise control through programmable timing and pulse modes. This system is ideal for both direct and indirect sonication and supports a wide range of accessories, including probes and cup horns. The included microtip enables efficient processing of very small volumes, making it perfect for micro-volume and high-precision applications.


• High-power 500 W ultrasonic processor
• Programmable operation from 1 second to 10 hours
• Pulse mode adjustable from 1 to 59 seconds
• Energy display in watts and joules
• Ideal for nanotechnology, cell disruption, and homogenization
• Supports direct probe and indirect (cup horn) sonication
• Wide range of accessories available
• Processes very small sample volumes with microtip (0.5–15 mL)
• Suitable for nanoparticle dispersion, mixing, and emulsification
• Robust, lab-proven design

SPECIFICATIONS

Sonic Dismembrator (Model 505 / FB505):

• Product Type: Sonicator
• Model: FB505
• Ultrasonic Frequency: 20 kHz
• Power Output: 500 W
• Voltage: 110/117 V
• Electrical Requirements: 110/117 V, 50/60 Hz
• Timer Range: 1 second to 10 hours
• Pulse Mode: 1 to 59 seconds
• Volume Range: 0.5 to 500 mL
• Dimensions (L x W x H): 15 x 18 x 9 in.
• Applications: Nanoparticle dispersion, mixing, homogenization
• Includes: Generator, converter, power cable, wrench set

Microtip Probe (0.5–15 mL):

• Product Type: Microtip Probe
• Volume Range: 0.5 to 15 mL
• Maximum Amplitude: 380 μm
• Diameter (English): 0.12 in.
• Tip Diameter (English): 1/8 in.
• Diameter (Metric): 0.3 cm
• Tip Diameter (Metric): 3 mm
• For Use With: 0.5 in. probe (#4220) for Model 505 and 705 Sonic Dismembrators

Included Components & Value:

• Model 505 Generator, Converter, Cables, Wrench Set (FB505A110): $7,760
• Microtip Probe (FB4418): $711
