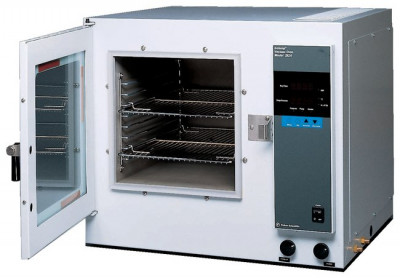

The Fisher Scientific Isotemp Model 282A vacuum oven is ideal for general vacuum drying and heating applications. The spacious interior is well suited for a variety of drying needs. This unit is designed to operate with reduced pressures and/or inert atmospheres and is equipped with separate vacuum and gas ports, each with its own control valve.
ADDITIONAL INFORMATION
Features include:
Automatic time and temperature control with LED display
Seven-day programmable timer can cycle the oven on or off up to eight times per day
Self diagnostics for open thermocouple, shorted triac, open heater, and over-temperature prevention plus panel alert lights
Built-in safety controller prevents temperature runaway
Backup thermostat
Equipped with separate vacuum and gas ports with control valves
Chamber door with full-view, tempered safety glass
Silicone door gasket and stainless-steel interior
Cold-rolled steel exterior is protected by baked-on epoxy enamel finish
Capacity to hold up to eight shelves
Specifications:
Dimensions, Interior: 18D x 12W x 12 in.H (46 x 31 x 31cm)
Exterior: 23L x 26W x 22 in.H (58 x 66 x 56cm)
Capacity: 1.5 cu ft (0.04 mm3)
Shipping weight, 205 lb. (92.9kg)
Temperature range: Ambient to 280°C
Heat rise time: Ambient to 100 deg C in less than 30 min.
Setpoint accuracy: Less than ±2°C
Setpoint reproducibility: ±0.1°C
Display: 3-digit LED display to nearest 1°C
Vacuum Pump-down time: To < 1mm in 3 min using a pump with 100 L/min air
displacement
Atmosphere control: Use with non-corrosive, nonflammable gases such as nitrogen and CO2.
