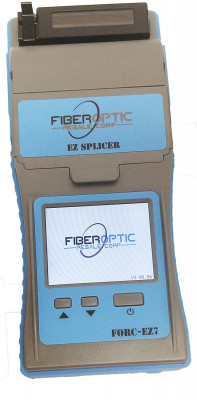

EZ7 EasySplicer Fusion Splicer

Product Specifications
BRAND  FORC
MODEL  EZ7 EasySplicer Fusion Splicer
DESCRIPTION
EZ7 EasySplicer Fusion Splicer
This splicer is fast, ruggard and designed for field use. Save time and keep costs down with the EasySplicer.
The EZ7 EasySplicer from FiberOptic Resale is the newest fusion splicer on the market. Recommended for FTTH installs the EZ7 EasySplicer is simple to use and weights in at only 4.3 pounds / (3.9 x 9.1 x 2.3 in) and has a splice time of under 7 seconds.
EasySplicer Features
  • Splicing method: V-grove (cladding alignment)
  • Fiber Types: SMF,MMF 50/125 um fiber, 250 µm primary and 900 µm secondary coated fiber.
  • Fiber Handling: Fiber holders, 2 pairs (250 and 900)
  • Splice Programs: 2 pre-defined. SMF & MMF
  • Typical splice Loss: 0.03dB SMF, 0.01dB MMF
  • Typical Cycle time: 7s + 35s (splice cycle+ oven cycle)
  • Sleeve Dimensions: Max 64mm length, 2-5mm diameter supported by oven.
  • Communication: USB, mini usb plug.
  • Memory: Internal 1MB, External SD-Card
  • Monitor: LCD, color, 2,8?, 320×240 pixels
  • Magnification: Camera 140x
  • Operating Environment: 0-40°C, max 95% RH, non-condesing
  • Weight: 800g - 4.3lbs
  • Power Sources: External power supply, 6V, 1.25A, 100-240VAC 50-60Hz, Build in Li-Ion battery pack
  • Splicing Capacity: 60 splicing cycles
  • Additional Features: Loss estimation, Fiber fault detection, SD-card for logging etc.

The EasySplicer Kit Contents

  • EasySplicer - EZ7
  • Cleaver - C7
  • AC Adapter
  • Hand Stripper
  • (2) 250um Fiber Holders
  • (2) 900um Fiber Holders
  • DC Car Adapter
  • Soft Cary Case
  • CD Manual
