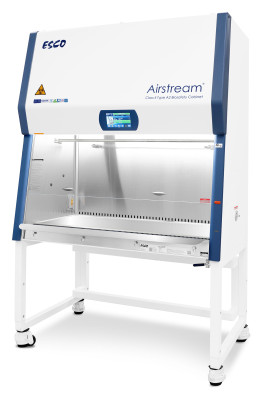

Esco AIRSTREAM Gen4 with Stand 4 Ft

Product Specifications

BRAND	ESCO
MODEL	AIRSTREAM Gen4
	4-foot
VENTILATION	Ductless
CLASSIFICATION	Class II, Type A2
EQUIPMENT CONDITION	New
EQUIPMENT CONDITION	New

DESCRIPTION

New Generation G4 - The Leading Energy Efficient, Quiet, and Ergonomic Biosafety Cabinet

The AIRSTREAM G4 Class II Type A Biological Safety Cabinet is an effective solution in providing operator, product and environmental protection within laboratories and industrial facilities. With the presence of its DC ECM blower, this is the most energy-efficient Class II Biosafety Cabinet in the world with 70% energy savings compared to AC motor. It also features stable and self-compensating airflow, despite building voltage fluctuations & filter loading. Its large performance envelope is an open declaration of possible safe operating airflow values. Certified to EN 12469, Esco AIRSTREAM RELIANT® Class II Biological Safety Cabinet also has antimicrobial coating on all its external and internal painted surfaces for improved safety.
Key Benefits
Centurion Touchscreen Controller

7” Capacitive Touch Screen, intuitive to use like phones
Displays key safety information graphically on one screen
Built-in guide to use the cabinet and respond to situations
Centered and angled down for easy reach & viewing
Datalogger to assist diagnostics and send info to BMS

USB Port and Zero Volt Relay Contact

USB Port to send operational information to Building Management System (BMS)
Zero Volt Relay Contact to turn ON/OFF exhaust

blower and signal the building alarm
One-Piece Interior Wall

Double layer side walls with negative pressure
Easy to reach service fixture and outlets
Large radius corner for easy cleaning

Dished Work Tray

Contains spillage
Angled edge for easy cleaning
V-shaped grille to prevent blocking

Raised Ergonomic Arm Rest

Helps prevent grille blocking
Comfortable working posture

Removable Paper Catch

Easy-to-clean
Optional pre-filter can be fitted

Airflow Sensor

Monitors real-time airflow for safety
Alerts the user if airflow is insufficient

Energy-efficient DC ECM Blower

The leading energy efficient Class II Type A2 Biosafety Cabinet in the world with 70% energy savings compared to AC motor
Stable airflow despite building voltage fluctuations & filter loading
Standby mode to further reduce power consumption by 60%

ULPA Filter

10x Filtration efficiency of HEPA filter
Creates ISO Class 3 work zone instead of industry-standard ISO Class 5
Same 10 years filter life and replacement cost as HEPA filters

Dynamic Chamber

Blower plenum and side walls are surrounded by negative pressure
Prevents contaminants from escaping outside
Steel plenum with Isocide™ coating, instead of flexible bag plenum, to prevent contamination leak

Angled Sash

10° angled front to optimize user comfort, reduce glare and maximize reach into the work area

ISOCIDE Powder Coat

Silver-ion impregnated powder coat
Inhibits microbial growth to improve safety
Prevents the plenum from becoming biohazard landfill

ADDITIONAL INFORMATION

Certification
Standards
ComplianceBiosafety CabinetsAir QualityFiltrationElectrical Safety
NSF / ANSI 49*ISO 14644.1, Class 3, Worldwide

US Fed Std 209E, Class 1 USAEN-1822 (H14), Europe
IEST-RP-CC001.3, USA
IEST-RP-CC007, USA
IEST-RP-CC034.1, USAUL-61010A-1, USA
CSA22.2, No.1010-192, Canada
EN-61010-1, Europe
IEC61010-1, Worldwide
*The NSF / ANSI 49 certified models are AC2-3S9-NS, AC2-4S9-NS, AC2-5S9-NS, AC2-6S9-NS
Specifications:

Nominal Size: 1.22 meters (4')
External Dimensions (W x D x H): 1340 x 850 x 1400 mm (52.8” x 33.5” x 55.1”)
Internal Work Area, Dimensions (W x D x H): 1220 x 610 x 660 mm / (48.0” x 24.0” x 26.0”)
Usable Work Area 0.60 m2 (6.5 ft2)
Tested Opening 203 mm (8”) or 254 mm (10”)
Work Opening 218 mm (8.6”) or 268 mm (10.6”)
Average Inflow Velocity 0.53 m/s (105 fpm)
Average Downflow Velocity 0.30 m/s (60 fpm)
Airflow Volume
- Inflow 473 cmh (280 cfm)
- Downflow 738 cmh (434 cfm)
- Required Exhaust 710 cmh (418 cfm)
  With Optional Thimble Exhaust Collar
- Static Pressure For 45 Pa / 0.18 in H2O
  For Optional Thimble Exhaust Collar

ULPA Filter Typical Efficiency:
- Downflow >99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA
- Exhaust >>99.999% at MPPS, H14 as per EN 1822 EU
Sound Emission (Typical): NSF/ANSI 49 58.7 dBA
Fluorescent Lamp Intensity (lux): 1040 lux (97 foot candles
Cabinet Construction:
- Main Body; 1.2 mm (0.05") 18 gauge electro-galvanized steel with white oven-baked epoxy-polyester Isocide antimicrobial powder-coated finish
- Work Zone; 1.5 mm (0.06") 16 gauge stainless steel, type 304, with BA finish
- Side Walls; 1.5 mm (0.06”) / 16 gauge, Stainless Steel 304, 4B finish
Electrical: 110-120V, AC, 60Hz,1ø
Cabinet Full Load Amps (FLA): 11.5
Cabinet Nominal Power: 220 W

Download
Catalog
Include:

Esco Airstream Class II Biological Safety Cabinet
Direct Mounted Electrical Outlet - Plug Code A
American-Style Universal Service Fitting for Air/Gas/Vacuum/Nitrogen
UV Lamp
Stand
Cable Port (Select the Option with + Cable Port)
