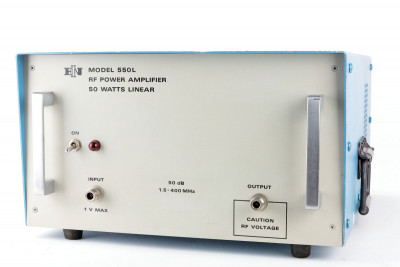

Electro-Navigational Instruments - 550L RF Power Amplifier

Electro-Navigational Instruments - 550L RF Power Amplifier
Specifications
PRODUCT DESCRIPTION
The 550L Broadband Power Amplifier is an extremely wideband high power solid state, Class A linear amplifier. Rated at 50 W from 1.5 to 400MHz, the unit can provide over 100 watts from 1.5 to 220MHz. The flat 50 dB gain allows the unit to provide maximum output when driven by any standard signal or sweep generator. The ultra linear design capability insures faithful reproduction of the output waveform for AM, FM, SSB, TV, pulse or other complex modulations with all harmonic distortion greater than 25 dB below the fundamental at full rated power.

Specifications
  • Frequency range 1.5 to 400 MHz
  • 50 W output power
  • 50 dB gain (nominal)
  • 50 Ohm impedance
  • N(f) connectors, input/output
  • 115/230 Vac; 50/60 Hz operation
  • Weight: 59 lb; Size: 394 mm (8.5 in)H x 502 mm (15.5 in)W x 216 mm (19.8 in)D
