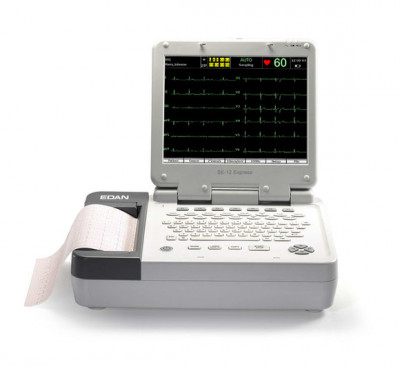

Edan SE-12 Electrocardiograph

Product Specifications

BRAND	Edan
MODEL	SE-12

DESCRIPTION

Edan SE-12 Express ECG
The twelve-channel ECG SE-12 Express is a special system of smart ECG series, which support both resting ECG and Exercise ECG. Alphanumeric keyboard and one touch operation design makes it the perfect choice for you.
Features

12.1 inch high-resolution foldable color TFT touch-screen
Specific function keys for Exercise ECG test
Various treadmills or bicycles and Suntech tango+ exercise blood pressure monitor supported
Customized exercise protocols
ST analysis and reports
Complete digital filters, resisting baseline drift, AC and EMG interference
Ethernet and RS-232 interface for data transmission to PC
Built-in rechargeable Lithium battery
Sleep mode for saving energy and extending LCD life
Real-time waveform freezing
120 seconds ECG waveform reviewable
Waveforms and auto-diagnosis results preview before printing
Automatic arrhythmia detection and recording
200 ECGs in internal memory
Automatic measurement and interpretation tested with authoritative CSE database
Heart rate variability (HRV) analysis

Specifications

Dimensions: 420mm x 330mm x 120mm (16.5" x 13" x 4.7")
Weight: 6.5kg (14.3 lbs)
Display: 800 x 600 multicolor LCD Screen
Recorder: Thermal dot-matrix
Folded thermal paper: 210mm x 295mm x 100 pages
HR Technique: Peak-peak detection
HR Range: 30 BPM ~300 BPM
HR Accuracy: ±1 BPM
ECG Leads: 12 standard leads
ECG Acquisition Mode: simultaneously 12 leads
ECG A/D Resolution: 24 bits
ECG Time Constant: ≥ 3.2 Seconds
ECG Frequency Response: 0.05Hz ~ 150Hz (-3dB)
ECG Gain: 2.5, 5, 10, 20, 10/5, AGC (mm/mV)
ECG Input Impedance: ≥ 50 mega ohms (10Hz)
ECG Input Circuit Current: ≤ 0.01 µA
ECG Input Voltage Range ≤ ±5 mVpp
Calibration Voltage: 1mV±2%
DC Offset Voltage: ±600mV
Noise: ≤ 12.5 µVp-p
Multichannel crosstalk ≤ 0.5mm
AC Filter: On/Off
DFT Filter: 0.05Hz/0.15Hz/0.25Hz/0.32Hz/0.5Hz/0.67Hz
EMG Filter: 25Hz/35Hz/45Hz/OFF
LOWPASS Filter:150Hz/100Hz/75Hz
CMRR: ≥ 115dB
Sampling Frequency: 1000 Hz
Pacemaker Detection Amplitude: ±2 to ±700 mV
Pacemaker Detection Width: 0.1 to 2.0 ms
Pacemaker Detection Sampling Frequency: 10,000/sec/channel
