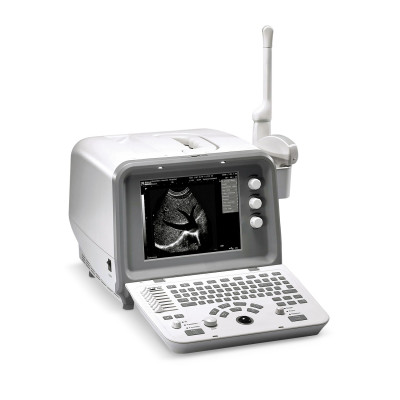

DRE FS-32P Digital Ultrasound

DESCRIPTION

The DRE FS-32P has Innovative technology powers and produces superb ultrasonic images. It has a maximum of 128 frames of built-in storage and a standard configuration of two transducer-connectors, offering you excellent flexibility. The DRE FS-32P also has features typically competing with higher-end systems.


ADDITIONAL INFORMATION

• Features include Dynamic frequency scan, Real-time dynamic aperture, Dynamic receiving apodization, Digital beam-forming, Multi-zone transmitting focusing, Dynamic receiving focusing, Ergonomic backlight keyboard design, Intelligent 8-segment TGC adjustment, Panoramic zoom function, 256-frame cine loop, 128-frame image storage, VGA output andDual USB port
• Applications include Abdomen, gynecology,obstetrics, urology,small parts and cardiology

Specifications:

• Imaging mode B, B+B, 4B, B+M
• Gray scales 256
• Display 10" non-interlaced
• Transducer frequency 2.5 ~ 10MHz
• Transducer connector 2 standard
• Beam-forming Digital beam-forming Dynamic receiving focusing Real-time dynamic aperture Dynamic frequency scanningDynamic apodizationTissue harmonic imagingTissue specific imaging
• Scanning angle From 40 to 155 degree(depending on transducers)
• Scanning depth (mm) From 40 to 240(depending on transducers)
