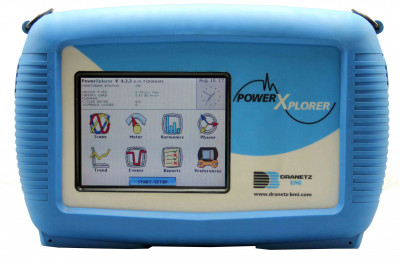

Dranetz PX-5 400

Dranetz PX-5 400
Specifications
BRAND  Dranetz
PRODUCT DESCRIPTION
The PowerXplorer integrates the most advanced feature set available in a power monitoring instrument, with an easy-to-navigate, color graphical user interface. With high-speed sampling and data capture (1 microsecond/channel), this unit simultaneously captures and characterizes thousands of parameters, using a range of standard and customizable operating modes. The measurement capabilities include capture of low-medium-high frequency transients through peak, waveshape, rms duration and adaptive high-speed sampling, as well as power measurements to clearly characterize non-sinusoidal and unbalanced systems. Users can select from a multitude of data displays such as phasors, waveforms, meters and harmonic spectrums. Eight channel inputs (four voltage and four current). Requires current transformers.

Specifications
  • Voltage Input: 1 to 600Vrms AC/DC (four), 256 samples/cycle 16 bit ADC
  • Current Input: Determined by CT (four), 256 samples/cycle 16 bit ADC
  • Sample Rate: 1 MHz
