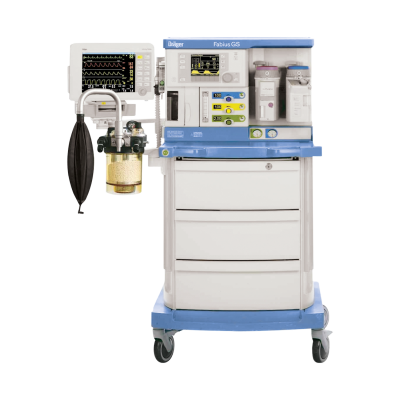

Drager/Siemens Fabius GS Premium Anesthesia Machine

Product Specifications

BRAND	Drager
MODEL	Fabius GS

DESCRIPTION

The Dräger Fabius GS Premium combines solid design and modular architecture with a wide range of ventilation capabilities that cover most operating room applications, providing exceptional performance, value and flexibility. Combining time tested design concepts with the comfort and utility of modern digital technology, it's an anesthesia workstation that is simple to use, highly efficient and ready for the future. An array of options allows you to expand the capabilities of the Fabius GS Premium to create exactly the workstation you need, letting you make the most of your investment.

Integration into your existing hospital information system is no problem for the Fabius GS premium. Take advantage of its information management capabilities with Infinity® monitoring solutions for rapid patient data access and transfer.

ADDITIONAL INFORMATION

FEATURES:

High-contrast color monitor with Dräger user interface for easy and familiar operation
All major ventilation modes
New, highly maneuverable trolley with central brake
Integrated LED workplace illumination
Solid, spacious design with large drawers
Industry standard rails for additional Dräger and third party equipment
CLIC absorber compatibility prevents contact with soda lime

SPECIFICATIONS:

Weight (Base Unit w/o Vaporizers or Cylinders): 296 lbs (134.2 kg)
Dimensions: (W) 30 in × (H) 52 in × (D) 33 in
Power Supply: 100-240 VAC, 50/60 Hz, 2.3 A max.
Battery (supports ventilator and monitor): > 45 min
Ventilator E-vent: Electronically controlled, electrically driven
Breathing Frequency: 4 to 60 bpm
Max. Minute Volume (MV): 99 L/min
Positive End-Expiratory Pressure (PEEP): 0-20 cmH2O
Inspiration/Expiration Ratio (Ti:Te): 4:1 to 1:4
Pressure Limiting (Pmax): 15-70 cmH2O
Tidal Volume (Vt): 20-1400 mL in Volume Control; 20-1100 mL in SIMV/PS
Inspiratory pause (Tip:Ti): 0-50%
SIMV Inspiratory Time (Tinsp): 0.3-4.0 sec
Inspiratory Pressure (Pinsp): PEEP + 5 to 65 cmH2O
Inspiratory Flow (InspFlow): 10-75 L/min in Volume and Pressure Control, 10-85 L/min in Pressure Support
Pressure Support Level (ΔPPS): PEEP + 3 to 20 cmH2O
Min. Frequency for Apnea-Ventilation (Freq. Min.): 3-20 bpm and "OFF"
Trigger: 2-15 L/min
Range of Fresh Gas Flow Indicators: 0.00 to 12.0 L/min
Total Fresh Gas Flow Meter: 0 to 10 L/min, calibrated with a mixture of 50 % O2 and 50 % N2O mixture
O2 Flush: at 87 psi (6 bar): max.75 L/min, at 41 psi (2.8 bar): min 25 L/min
Vaporizer Mount: 2 and 3 position auto exclusion mount
Serial Interface: 1 × RS 232 (standard), 1 × RS 232 (option)
Protocols: Vitalink and Medibus
Data Available for Export: All fresh gas flow, ventilation and O2 data
Volume of CO2 Absorber: 1.5 Liter, option: Dräger medical's consumable CLIC adsorber
Volume of Entire compact Breathing System: 2.8 Liter + Bag
