Diverse Technologies MF300Fe+

Diverse Technologies MF300Fe+
Specifications
PRODUCT DESCRIPTION

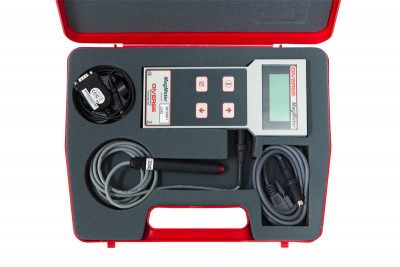

Diverse Technologies : MF300Fe+
The MF300Fe+ is the latest instrument from Diverse Technologies. The MF300Fe+ measures the Ferrite number (FN) of austenitic and duplex stainless steel weld material. The robust, slimline probe benefits from a novel magnetic system with excellent coupling to a measurement sample, that is sensitive to ferrite content in 10mm area to a depth of approximately 1mm. An air cooled version of the probe (must be specified at time of order) allows Ferrite measurements on hot samples as well.
The MF300Fe+ can store up to 1000 measurements including record number (0 - 999), measured ferrite number and recorded ID (4 characters, 0-9, A-Z and space). You can download or upload these measuremetns to a PC via RS232 or USB (optional).
The instrument is calibrated used the secondary weld standard validated by NIST in the USA. All 16 standards are used in calibration with a measurement range from 0 - 115 FN. Transfer standards are supplied with the instrument allowing performance to be verified at any time.

Features of MF300Fe+ Ferrite Meter:
  • Non-destructive test of the ferrite content in a range of 0.1 to 115FN equivalent to 0.1 to 80.5% Fe in austenitic and duplex steel.
  • Robust and portable
  • Standard or Peak measurement of Ferrite Number
  • Estimate of ferrite percentage displayed (70% of FN)
  • Automatic zero on demand
  • Supplied with 5 transfer standards, allowing veracity of instrument to be checked
  • Storage of 1000 measurements downloadable to PC with RS232/USB option
  • Serial software updated to include partial database download and upload of recorded IDs to the instrument.
  • Record structure now includes a user selectable identifier (ID), this is a 4 character ID where each character can be 0 - 9, Space or A - Z.
  • Next record can be selected by the user if needed (recorded ID of the next record is automatically displayed on the screen)
  • Use with high temperature samples (air-cooled probe option)
  • Simple measurement with small sample area
  • Units selectable between WRC-FN and %Fe
  • Calibraton to weld standards validated by NIST and TWI according to methods described in DIN EN ISO 8249 and ANSI/AWS A4.2.
