DC Hipot and Megohmmeter – PTS-130(F)

PRODUCT DESCRIPTION

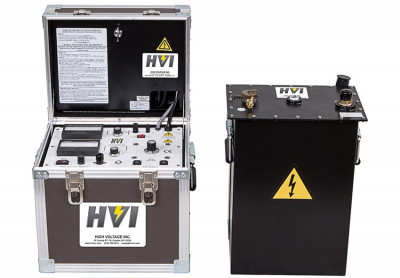

The PTS-130(F) is designed as a two-piece system with a small, portable controller and high voltage section with 20 ft. shielded output cable.
Like all HVI products, the PTS-130(F) is designed to be rugged and reliable, equipped with all the features needed for portable maintenance testing of new or service aged electrical apparatus and cable.

Features:

• Two range voltmeter and five range current meter
• MΩ readings at any output voltage (w/analog meters)
• Insulated return guard circuit to bypass stray leakage currents
• Rugged case (field) with cushion grip handles and storage for leads
• Internal discharge resistors to assist external bleed resistors
• External safety interlock provision
• Automatic transit protected meters rated 100 uA for durability
• Benchtop or field controller available, analog or digital metering

Specification

• Input:
  • 120 V, 60 Hz, 15 A
  • (F) 230 V, 50/60 Hz, 8 A
• Output:
  • 0 – 130 kV DC @ 10 mA, negative polarity, positive ground
• Duty:
  • Continuous
• Voltmeter:
  • 3.5″, scaled 0-70/150 kV DC, ±2% F.S.
• Current Meter:
  • 3.5″, scaled 0-1.0 µA DC, ±2% F.S. with multipliers of x 1, x 10, x 100, x 1 k, x 10 k
  • Guard/ground load return
• Megohmmeter:
  • Scaled 100 -1 MΩ with multipliers of x 0.1, x 1, x 10, x 100, x 1 k
• Size & Weight:
  • (W x D x H)Case:
  • 14 x 11 x 14 in., 34 lb.
  • 356 x 279 x 356 mm, 15 kg
• HV Tank:
  • 12.5 x 12 x 18 in., 82 lb.
  • 318 x 305 x 457 mm, 37 kg
• Output Cables:
  • 20 ft. (6 m) shielded EPR output cable with alligator clamp
  • EPR cable stays flexible in cold weather
• Accessories:
  • 20 ft. (6 m) return lead with alligator clamp
  • 20 ft. (6 m) ground lead with alligator clamp
  • 10 ft. (3 m) input line cord
  • Ground stick with 20 ft. (6 m) lead and clamp
