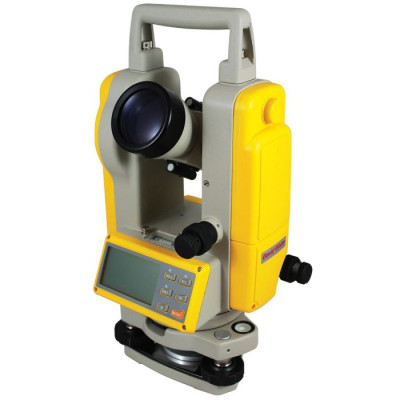

David White DT8-05P Digital Theodolite

Product Specifications

BRAND	David White
MODEL	DT8-05P Digital Theodolite

DESCRIPTION

The DT8-Series digital transit theodolite gives you accurate measurements for a wide range of construction and survey applications.

ADDITIONAL INFORMATION

FEATURES:

Simple, push button functions gives the user precise LCD digital readouts.
Incremental encoding detection system with dual digital displays
Automatic power shut-off
Laser plummet for centering of point
Coaxial tangent and clamp screws provide ease of use in sighting and alignment
A built-in battery pack can be attached and detached by a single action
Water-resistant, sealed construction

SPECIFICATIONS:

Telescope:
- Objective aperture: 1.77 in (45 mm)
- Magnification: 30X
- Image: Erect
- Field of view: 1° 30′
- Resolution: 3”
- Minimum focus: 53 in (1.3 m)
- Stadia constant: 100
Electronic Angle Measurement:
- Angle measurement: Absolute Encoding
- Minimum reading: 1” / 5”
- Direction method: H. Both sides, V. Single side
- Accuracy: 5”
- Unit of angle: Deg / mil / gon / V%
- Display: LCD both sides
Tilt Sensor:
- Automatic Compensation: Yes
- Range of Compensation: +/-3’
Level Vial Sensitivity:
- Plate vial: 30” per 2 mm
- Circular vial: 8’ per 2 mm
Other
- Operating voltage, typical: 4.8 VDC
- Batteries: 4 x 1.5V (AA)/Rechargeable Ni-MH
- Operating Temperature range: -4 °F to +122 °F (-20 °C to +50 °C)
- Waterproof class: IP 54
- Weight: 10.2 lb (4.6 kg)
- Dimensions: 6.5 x 6.1 x 13.4 in (164 x 154 x 340 mm)
