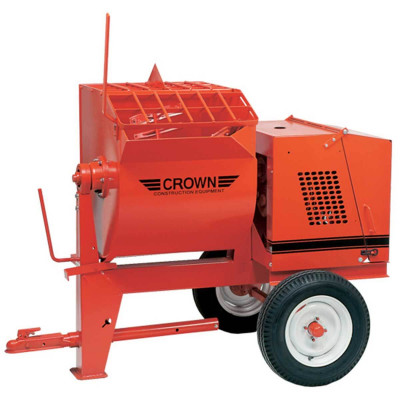

Crown 10S Mortar Mixer

PRODUCT DESCRIPTION

Specifications

• Capacity Bag3 - 3 1/2
• Cubic Feet10
• Overall Height57.5"
• Overall Width45"
• Charging Height60"
• Overall Length (Tow pole In/Out)73" / 92.75"
• Tires (Pneumatic)5.3 x 12
• Spiral Blade OptionYes
• Weight - Max lbs650
• Highway towableYes

CROWN´S EXCLUSIVE GEAR BOX
Advantages

•  No. 6: reduced engine require
  – Belts and pulleys turn 6 times faster while eliminating belt slippage
• Mixers and engines are less expensive because:
  –  No built in gear reducer
  –  Less horsepower required
• Totally enclosed gears
  –  Safer for operator
  –  Better lubricated than open gears, less heat and gear wear
  –  Quieter running mixer
  –  No opportunity for gear teeth to be broken by aggregate falling between gears
• Solid engine mount-Gear reducer and belts used as clutch
  –  No unnecessary engine abuse
  –  No need for expensive internal clutches
• Our exclusive gear box comes standard on ALL Crown mortar mixer

DUAL SPIRAL
Crown’s inner and outer spiral blades work like two augers to provide mixing on both the inside and outside radius, moving more material than traditional systems and providing increased air entrainment.
Discover the Spiral Difference!
Crown’s spiral mixing system works like a spiral conveyor rapidly moving material across the drum providing a faster, more thorough mixture.

• 30% faster mix
• Less splash – reduces cleanup and increases capacity
• No contact with the drum – reduces drum wear
• No rubber blades – reduces maintenance
• Perfect fort color additives and dry mixes
