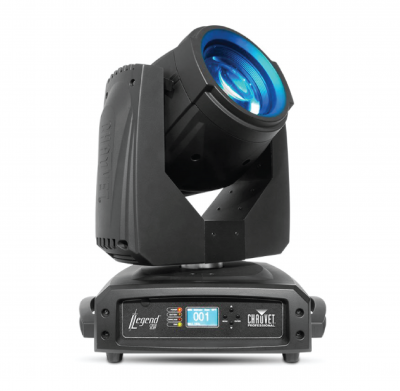

Chauvet Legend 230sr Beam

PRODUCT DESCRIPTION

The Legend 230SR Beam features a 230 W Osram Sirius lamp outputting an intense 96,000 lux at 15 meters, thanks to precision glass optics and a tiny 2.25° beam angle. Compact and agile, it also features a zooming 8-facet prism and 17 gobos (plus open) for beam shaping effects, along with automated focus. In addition to 14 solid colors plus white, the color wheel delivers seamless split colors.

  Features:

• 3-pin and 5-pin DMX input/output connections
• Virtually silent operation for use in any situation
• Precision optics for hard-edged beam effects
• Variable frost for wash-style effects
• 8-facet rotating prism with zoom for stunning effects
• Fast, precise pan and tilt movement
• Neutrik® powerCON® power input
• Uses Osram Sirius 230 W lamp source with a rated 2,500 hours of lamp life
• Compact moving yoke beam fixture with zoomable prism and motorized focus

Specifications:

• DMX Channels: 15 or 18
• Data Connectors: 3- and 5-pin XLR
• Light Source: Osram Sirius 230 W lamp, 8000 K, 2,500 hours life expectancy
• Pan and Tilt: 540°/270°
• Automatic Pan/ Tilt Correction: Yes
• Built-in Automated Programs: No
• Customizable Programs: No
• Recall Custom Programs: No
• Colors: 14 + white, split colors, continuous scroll at variable speeds
• Gobos: 17 + open, continuous scroll at variable speeds
• Prism: 8-Facets, motorized, rotating (w/ zoom)
• Dimmer: Motorized
• Focus: Motorized
• Shutter/Strobe: Motorized
• Beam Angle: 2.25°
• Illuminance: 96,000 lux @ 15 m
• IP Rating: IP20, dry location
• Power Input: Neutrik® powerCON®
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 415 W, 3.43 A @ 120 V, 60 Hz
• Power and Current: 401 W, 2.02 A @ 208 V, 60 Hz
• Power and Current: 385 W, 1.75 A @ 230 V, 50 Hz
• Weight: 41.3 lb (18.7 kg)
• Dimensions: 13.5 x 16.4 x 19.6 in (343 x 415 x 498 mm)
• Approvals: CE, MET
