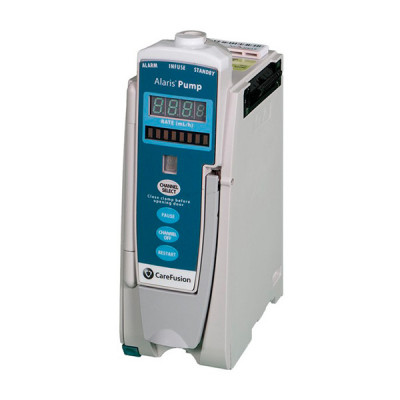

CareFusion Alaris Pump Module 8100

DESCRIPTION

The BD CareFusion Alaris IV Pump Module is employed for the administration of substantial fluid volumes, medications, blood, and blood products through continuous or intermittent delivery, catering to adult, pediatric, and neonatal patients. Infusions can be delivered through clinically approved routes like intravenous, intra-arterial, subcutaneous, epidural, enteral, or fluid space irrigation.
Medical professionals have the flexibility to connect up to four pump modules to a single Point of Care (PCU) Unit, enabling the simultaneous management of four distinct infusions. The Alaris 8100 modules can be conveniently attached to either side of the PC unit to configure the system as needed.
The Alaris 8100 module is equipped with the Guardrails Suite MX software, which acts as a safety measure to minimize the chances of medication errors. It performs a reasonability check before commencing therapy.

ADDITIONAL INFORMATION

Features:

• Dimensions:
  • Height: 8.9” (22.6 cm)
  • Width: 3.3” (8.4 cm)
  • Depth: 5.5” (14 cm)
  • Weight: 2.5 lbs (1.13 kg)
• Accumulated Air Window:
  • Single Bolus Setting: 50; Volume Window (mL): 2.8; Air That Causes Alarm: 10%
  • Single Bolus Setting: 75; Volume Window (mL): 8.0; Air That Causes Alarm: 20%
  • Single Bolus Setting: 250; Volume Window (mL): 8.0; Air That Causes Alarm: 30%
  • Single Bolus Setting: 500; Volume Window (mL): 12.0; Air That Causes Alarm: 30%
• Bolus Volume, Maximum after Occlusion:
  • Pressure Limit (mmHg): 50; Rate (mL/h): 25; Bolus Volume (mL): ≤0.3
  • Pressure Limit (mmHg): 525; Rate (mL/h): 25; Bolus Volume (mL): ≤0.6
• Critical Volume: The maximum over-infusion which can occur in the event of a single fault condition is 0.6 mL.
• Fluid Ingress Protection: IPX1,
• Drip Proof Maximum Infusion Pressure: 654 mmHg (Maximum Occlusion Alarm Threshold plus tolerance)
• Rate Accuracy:
  • ±5% at rates between 1 and 999 mL/h; ±5.5% at rates <1 mL/h, 95% of the time with 95% confidence, under the conditions listed below.
• Infusion Rate Range: 0.1 - 999 mL/h
• Ambient Temperature: 68 ±4° F (20 ±2° C)
• Source Container Height: 20 inches above top
• Test Solution: Distilled Water
• Distal Back pressure: 0 mmHg (0 kPa)
• Needle: 18 gauge
• Administration Set Model: 2210
• Infusion of Air, Means to Protect Patient from:
  • Ultrasonic Air-in-Line Detection: Maximum single bolus size = selectable 50, 75 or 250 microliters nominal (500 microliters in Anesthesia Mode)
• IKVO (Keep Vein Open) Rate
  • Factory Default Setting is 1 mL/h if set rate is 1 mL/h or above; or set rate, if rate is 0.9 mL/h or below.
• KVO Selection Range:
  • KVO rate can be set in System Configuration from 0.1 - 20 mL/h in 0.1 mL/h increments.
• Occlusion Alarm Thresholds:
  • Pumping Mode: 525 mmHg at rates ≥30 mL/h Varying level based on rate and patient back–pressure at rates <30 mL/h.
• Selectable Mode: User selected, 50 - 525 mmHg in 25 mmHg increments.
• Operating Principle:
  • Positive displacement
• Shock Protection:
  • Type CF, Defibrillator Proof
• Environmental
• Operating
• Temperature Range: 41 to 104°F (5 to 40°C)
• Relative Humidity: 20 to 90%
• Atmospheric Pressure: 525 to 4560 mmHg (700 to 6080 hPa)
• Storage / Transport
• Temperature Range: -4 to 140°F (-20 to 60°C)
• Relative Humidity: 5 to 85%
• Atmospheric Pressure: 375 to 760 mmHg (500 to 1013 hPa)
