Bovie MI 750 Medical Lighting from $75.20/mo

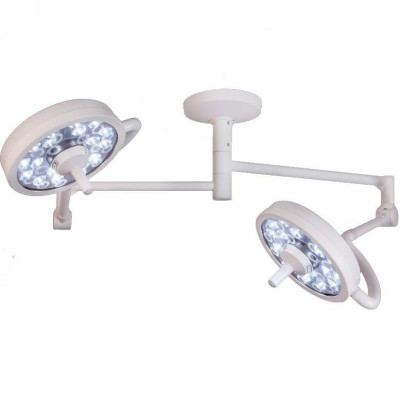

Bovie MI 750 LED - Exam Room Light, Ceiling Mounted (XLDP-SC)

Bovie MI 750 LED - Exam Room Light, Ceiling Mounted (XLDP-SC)
Product Specifications
BRAND  Bovie
MODEL  MI 750
DESCRIPTION
XLDP-SC - MI 750 LED - Exam Room Light, Ceiling Mounted
GREEN TECHNOLOGY
The energy efficient LED technology consumes less electricity than halogen lighting options and eliminates the additional
cost of purchasing replacement bulbs, thereby reducing the cost of ownership significantly.
EXCELLENCE
Designed with unmatched lifetime spring-arm technology, 50,000 hour LEDs, and output rated at 50,000 Lux with a Kelvin
color temperature of 4300°, the MI 750 offers a high quality lighting system that easily aligns with any practice budget.
MAINTAIN STERILITY
The on/off and dimming switch is located on the sterilizable handle to maintain sterility throughout procedure, when
necessary.
PROCEDURAL COMFORT
Using cool LED technology improves the comfort of the patient, practitioner, and medical staff.
VERSATILE
The MI 750 LED is available in a variety of mounting styles to ensure proper setup and light delivery for a variety of
healthcare specialties.

MI 750 Specifications


Weight
HeadApproximately 8.6 lbs. (3.9 kg)
ArmApproximately 12.5 lbs. (5.7 kg)
Arm (Floor)Approximately 11.5 lbs. (5.2 kg)
Wall Bracket Assy.Approximately 3.0 lbs. (1.4 kg)
Floor Stand Assy.Approximately 43.0 lbs. (19.5 kg)
Single Ceiling MountApproximately 14.5 lbs. (6.6 kg)
Dual Ceiling MountApproximately 16.0 lbs. (7.3 kg)
Dimensions
HeadØ 14.5” (Ø 368 mm) x 3.28” (83.3 mm) deep
Arm58.5” (1,485 mm) Long
Arm (Floor)38.5” (978 mm) Long
Floor Stand75.5” (1,917 mm) High
Rotations
Articulating Arm Vertical Movement+/- 40°
Articulating Arm Horizontal MovementApproximately 345°
Articulating Arm/Yoke InterfaceApproximately 540°
Yoke/Lamp Head InterfaceApproximately 190°
Electrical
Input Voltage100 – 240 VAC 50/60 Hz
Power ConsumptionApproximately 65W max
LED life50,000 hours (average)
Power Consumption
Solo120/230 VAC, 50/60 Hz 65 Watts
Duo120/230 VAC, 50/60 Hz 130 Watts
Optical
18 Inner opticsClear acrylic, multi-source
6 Outer opticsClear acrylic, multi-source
Performance
Color temperature4,300° Kelvin ±300°K
Focal length39.4” (1 meter)
Central illuminance (full intensity)75,000 +/- 5K LUX
Dimming – 3 Intensity Levels100% - 75% - 50%
(Indicated by 3 LED’s on 250,000 - 37,500 - 25,000
indicator strips located 180° apart)

Light field diameter (d10)Approximately Ø 9.0” (Ø 229mm)
Light field diameter (d50)Approximately Ø 5.0” (Ø 127mm)
Depth of illuminationApproximately 50”
Shadow Dilution
Illuminance (one mask)Approximately 240 LUX
Illuminance (two masks)Approximately 23,960 LUX
Illuminance at bottom of standard tubeApproximately 51,950 LUX
Illuminance (tube with one mask)Approximately 100 LUX
Illuminance (tube with two masks)Approximately 23,070 LUX
IrradianceApproximately 141.2 W/m2
CRI≥ 87
Environmental
Operating Temperature41°F to 104°F (5° to 40° C)
Storage Temperature Range–4°F to 122°F (-20° to 50° C)
Humidity10 - 90% Relative Humidity
Pressure100 kPA (@<2K meters)
