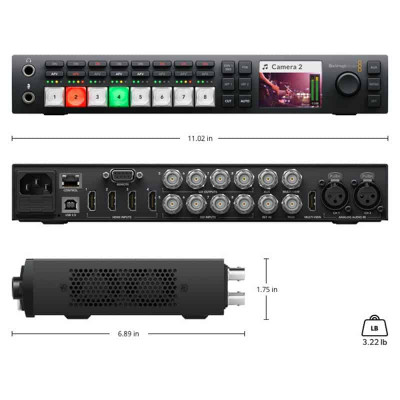

Blackmagic ATEM Television Studio HD

Blackmagic ATEM Television Studio HD
Specifications
BRAND  Blackmagic
MODEL  Blackmagic ATEM Television Studio HD
PRODUCT DESCRIPTION
The Blackmagic Design ATEM Television Studio HD is the first live production switcher designed for both broadcasters and AV professionals. It includes four SDI and four HDMI inputs so you can connect up to eight sources, and it supports all formats up to 1080. Packed with high end broadcast features, ATEM Television Studio HD has re-sync on all inputs so you always get clean switching whether you’re using professional or consumer cameras. Plus, you get multi view output so you can see all of your sources, preview and program on a single screen, aux out, built in talkback, two still stores, an audio mixer, camera control unit and more.The ATEM Television Studio HD is ideal for live production, episodic television, web shows, AV or even live coverage of video gaming competitions! Simply plug in your cameras, game consoles or computers and start switching live.
ADDITIONAL INFORMATION
  • Extremely portable design
  • Front panel control
  • Software or hardware control
  • SDI and HDMI inputs
  • Professional SDI outputs
  • Built-in multi view
  • Powerful transitions
  • Built-in 2D DVE
  • Includes talkback
  • Real time keyers
  • Professional 3G-SDI connections
  • Professional audio mixer
  • Remote camera control
  • Aux SDI output
  • Extreme reliability
Specifications
  • Connections:
    • Total Video Inputs: 8
    • Total Outputs: 8
    • Total Aux Outputs: 1
    • SDI Rates: 270Mb, 1.5G, 3G
    • Total Audio Inputs: 2 x XLR
    • Total Audio Outputs: None, embedded audio only
    • Timecode Connections: None
    • SDI Video Input: 4 x 10-bit SD/HD switchable. 2 channel embedded audio
    • HDMI Video Input: 4 x HDMI type A, 10-bit SD/HD switchable. 2 channel embedded audio
    • Reference Input: Tri-Sync or Black Burst
    • Video Input Re-Sync: On all 8 inputs
    • SDI Program Output: 5 x 10-bit SD/HD switchable
    • HDMI Program Output: None
    • SDI Audio Output: 2 Ch embedded into SDI output
    • Computer Output: None
    • Qty of Multi-Views: 1
    • Outputs per Multi-View: 1 x HD-SDI and 1 x HDMI
    • Control Panel: Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software
  • Standards:
    • SD Format Support: 525i59.94 NTSC 4:3 or 16:9, 625i50 PAL 4:3 or 16:9
    • HD Format Support: 720p50, 720p59.94, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94,, 1080i50, 1080i59.94
    • Ultra HD Format Support: None
    • SDI Compliance: SMPTE 259M, 292M and 424M
    • Video Sampling: 4:2:2 10-bit
    • Color Precision: 4:2:2 10-bit
    • Color Space: 4:2:2 YUV
    • HDMI Input Resolutions for Computers: 720 x 480i 59.94Hz, 720 x 576i 50Hz, 1280 x 720p 59.94Hz 50Hz and 1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 1920 x1080i 50 and 59.94Hz 60Hz
    • Colorspace Conversion: Hardware based real time
    • Processing Delay: 6 Lines
  • Audio Mixer:
    • 10 input x 2 channel mixer
    • Selectable On/Off/Audio-Follow-Video
    • Level and Peak metering
    • Master gain control. Headphone output level control with separate mix of Program, Talkback and Sidetone
  • Software:
    • Control Panel Included: ATEM Software Control Panel included free for Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later and Windows 8.1 64-bit or Windows 10 64-bit
    • Software Updates: Using USB connection directly connected to Mac OS X or Windows computers or via ethernet. Includes ATEM Switcher Utility
    • Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis
  • Product Specifics:
    • Upstream Keyers: 1
    • Downstream Keyers: 2
    • Chroma Keyers: 1
    • Linear/Luma Keyers: 3
    • Transition Keyer (Stinger/DVE): 0 and 1
    • Total Number of Layers: 5
    • Pattern Generators: 2
    • Color Generators: 2
    • DVE with 3D Borders & Drop Shadow: 1
    • Interface: Minimum monitor resolution of 1366 x 768
    • Number of Windows: 1 x 10
    • Routable Windows: 8 routable and 2 fixed for Program and Preview
    • Tally: Red for program and green for preview indication
    • Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product (Not included)
    • Windows Source Labels: Yes
    • Control Panel Compatibility: Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Broadcast Panel and ATEM 2 M/E Broadcast Panel
  • Multi View Monitoring:
    • Multi View Monitoring: 1 x 10 Views
    • Multi View Video Standard: HD
  • Media Player:
    • Media Players: 2
    • Channels: Fill and key for each Media Player
    • Media Pool Still Image Capacity: 20 with fill and key
    • Media Pool Clip Capacity: None
    • Media Player Clip Length in 720 HD: None
    • Media Player Clip Length in 1080 HD: None
    • Media Player Clip Length in Ultra HD: None
    • Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF
    • Media Pool Video File Format: None
    • Media Pool Audio File Format: None
  • Software:
    • Software Updates: Using USB connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility
    • Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis
  • Operating Systems:
    • Mac: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later
    • PC: Windows 8.1 64-bit or Windows 10 64-bit
  • Power Requirements:
    • Power Supply: 1 x internal 110 – 240V AC
    • Power Usage: 40W
