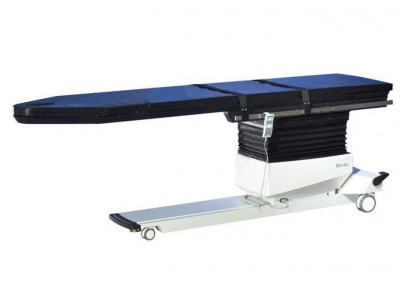

BIODEX 870 PAIN MANAGEMENT C-ARM TABLES. 058-870 - Surgical C-Arm Table 115VAC

DESCRIPTION

FEATURING A LARGE RADIOLUCENT AREA, MOTORIZED ACTUATION OF HEIGHT, LATERAL ROLL AND TRENDELENBURG MOTIONS, THE 870 IS IDEAL FOR PAIN CARE APPLICATIONS.
Main Features:

• 30" x 1.12" x .375"
• (75 x 2.86 x .95 cm) mounted near foot end of table
• Patient Restraints: Three body straps
• Finish: Powder coat
• Shipping Weight: 877 lb (397.8 kg)
• Patient Capacity: 500 lb (227 kg); weight tested to four times the patient load rating.
• Lift Capacity: May vary between 460 lb - 500 lb
• (209-227 kg) based on line voltage
• Power: 115 VAC or 230 VAC
• Warranty: Two years
• Certifications: ETL and cETL listed to UL 60601-1®, CAN/CSA© C22.2 No.: 601-1-M90, EN 60601-1, IEC 60601-1-2



Automatic positioning
A portable hand-held controller and optional foot-operated controller can be positioned for convenient access from any point around the table. The portable hand-held and optional foot-operated controllers offer the freedom to adjust height, lateral roll, and Trendelenburg motions from locations away from the table, or when hands are busy with other functions. The hand-held controller hangs on an accessory rail when not in use.
Accommodates portable or ceiling-suspended C-Arms
Designed for procedures where stability, access, and precise, quiet, vibration-free positioning are essential, the Pain Management C-Arm Table is excellent for image-guided procedures. A cantilevered low attenuation carbon fiber tabletop accommodates portable or ceiling-suspended C-Arms. The radiolucent area is free of cross members, allowing full fluoroscopic visualization and unobstructed C-Arm positioning. Functional design provides complete access with reduced radiation exposure to clinicians.
Patient comfort and stability are assured by two-inch thick table padding and three adjustable straps with hook and loop fastening. A face cutout is provided for prone positioning.
Ideal for pain care applications:

• Low attenuation carbon fiber tabletop, with innovative contour design High-speed actuators assure quick, three axis motorized tabletop positioning
• Convenient positioning controllers
• Smooth starts and stops programmed into all motorized movements
• 500-lb patient capacity
• Face cutout for comfortable prone positioning
• Low profile base for C-Arm clearance
• Accessory rails

Featuring a large radiolucent area, motorized actuation of height, lateral roll and Trendelenburg motions, the 870 is ideal for pain care applications.
Quick, safe control
A portable hand-held controller and optional foot-operated controller can be positioned for convenient access from any point around the table. The portable hand-held and optional foot-operated controllers offer the freedom to adjust height, lateral roll, and Trendelenburg motions from locations away from the table, or when hands are busy with other functions. The hand-held controller hangs on an accessory rail when not in use.
Innovative Contour Design Top: Biodex C-Arm tables feature a uniquely contoured tabletop. This design fully accommodates C-Arm positioning for closest possible access to the cervical spine, achieving optimum image resolution. A second benefit to the contour design is the added workspace at the head end, while maintaining the narrowness required for cervical procedures. As required by law, all Biodex C-Arm tables are CDRH registered and FDA Device Listed.
All motorized tables are ETL product listed to the UL 60601-1 Medical Electrical Equipment Safety Standard.
Dimensions:

• 93" l x 26" w (233 x 66 cm) with OR accessory rails

Tabletop:

• 90" l x 24" w (228.6 x 61 cm)

Radiolucent Area:

• 60" l x 24" w (152.4 x 61 cm) unobstructed head to accessory rail
• 4" l x 17.5" w (10.1 x 44 cm) additional, between accessory rails
• Total Length: 64" l (160 cm)

Tabletop Material: Carbon fiber with integral head section
Mattress:

• 2" thick (5 cm)

Attenuation:

• Tabletop: .7 mm Aluminum equivalence
• Mattress: .5 mm Aluminum equivalence

Motions:

• Height Adjustable: 30" to 40" (75 to 100 cm)
• Trendelenburg: 0° to 20°
• Reverse Trendelenburg: 0° to 20°
• Lateral Roll: 0° to 20°

Controls:

• Hand Control: activates height, lateral roll and Trendelenburg motions
• Foot Control (optional): activates height, lateral roll and Trendelenburg motions

Wheels:

• Head End – 3" (7.62 cm) swivel casters, integral locking system on base
• Foot End – 5" (12.7 cm) swivel casters with central locking

Accessory Rails: Standard OR accessory rails
