BEING Instruments BRE-502 Evaporator from $219.08/mo

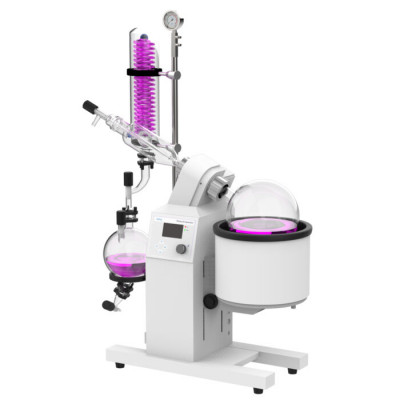

BEING BRE-502 Rotary Evaporator (1.8 Cu.Ft/50L)

BEING BRE-502 Rotary Evaporator (1.8 Cu.Ft/50L)
Specifications
BRAND  BEING Instruments
MODEL  BRE-502
PRODUCT DESCRIPTION
BEING BRE-502 Rotary evaporators are mainly used for distillation or separation applications often used for medicinal chemistry, pharmaceutical, chromatography, and petrochemical fields. Rotovap systems work by increasing the rate of evaporation of the solvent through the following:
  1. Reducing the pressure to lower the solvent boiling point.
  2. Rotating the sample to increase the effective surface area.
  3. Heating the solution.
  4. Condensing the evaporated solvent in a cooled glass condenser
ADDITIONAL INFORMATION
  • Simple design for one handed operation manually or automatically.
  • A unique PTFE sealing system provides exceptional thermostability, minimizes corrosion, and helps to ensure day in day out headache free operation.
  • Our Bath offers a dual heating mode for water and oil with overheat protection.
  • PID controller offers easy input of parameters and large LCD display for easy viewing.
  • Vacuum regulator available.
Features
  • ETL Certified for Lab use.
  • Digital temperature and speed control with simple user interface
  • Electric Bath Lift
  • Teflon Coated Bath for corrosion resistance
  • High-efficiency drain port and injection valves
  • Smaller footprint for improved workspace allocation
  • Mobility with locking casters
  • Shorter vapor path for faster evaporation and condensation
  • Direct injection capability for continuous feeding of solution
  • Continuous draining capability without the need to release vacuum or stop the system
Size: 50L
Rotation Speed: 20-110rpm
Evaporate Speed: Max9.0L/h
Ultimate Vacuum: 8mbar
Temperature Range: Amb+5℃ – 90℃
Temperature stability: ±2℃
Condensation area(㎡): 1.75
Volume of Collecting bottle: 20L
Exterior Dimension (mm): W1300*D640*H2100
Water Bath Dimension (mm): Φ550*H320
Power: 4300W
Barb Interface size: M18
Suggest environment temp: 5℃ – 35℃
Electricity Application: 220V 60Hz
