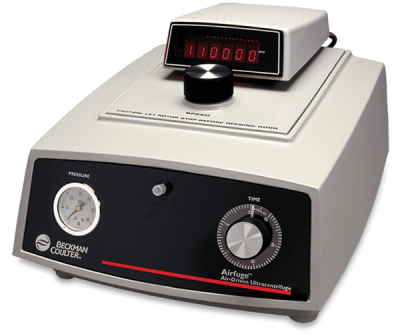

Beckman Airfuge Air Ultracentrifuge

DESCRIPTION

The Beckman Coulter Airfuge is an air-driven ultracentrifuge that reaches speeds up to 110,000 rpm (rotations per minutes) and accelerates to high speeds within 30 seconds. This unit does not employ vacuum or high-speed bearings, and the rotor is supplied and driven by a pressurized air source. Rotor speed can be determined by conversion of the applied air pressure to rpm (compatible with a speed gauge instrument, not included). The Airfuge is also an exceptionally safe ultracentrifuge because the rotor is held in place by a pressure differential created by centrifugation, and its air pressure limitation of 35 psig (240 kPa) is factory set. The rotor also decelerates smoothly to keep the sample contents separated. The control panel of the Airfuge has a pressure regulator knob, pressure gauge, and a run light and has a polycarbonate coat finish. Other controls include a time-delay knob, brake tension screw and a levitation air screw. The inner chamber features a brass stator and houses an anodized aluminum rotor with turbine flutes that hold six microtubes at a 18 degree fixed angle from the axis of rotation.

ADDITIONAL INFORMATION

Features and specifications:


• Speed range: 80,000 to 110,000 rpm (+/- 5,000 rpm)
• Max relative centrifugal field: 199,000 x g
• Air pressure for routine operation: 30 psig (207 kPa)
• Maximum/Minimum air pressure at ultracentifuge: 75 psig (517 kPa)/20 psig (138 kPa)
• Maximum air flow rate at 30 psig: 0.0015 m3/s (3.5 cfm)
• Time: to 5 hours in 5-minute increments, or continuous run (hold)
• Approximate acceleration time: 2.5 to 5.5 minutes
• Rotor temperature: always a few degrees above ambient temp
• Cold room tolerant
• Dimensions (L x W x H): 15 x 11 x 8 in (38 x 28 x 20 cm)
• Weight: 10.4 kg (23 lb)
• Tested to function at altitudes at or below 2000 m
• Compatible with different types of ultracentrifuge rotors
• 120 VAC
• S/N: AK005
